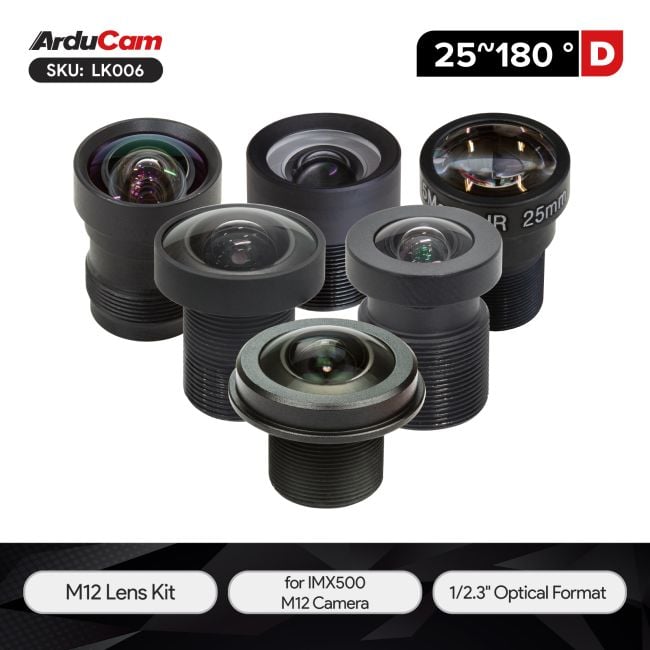

Arducam IMX500 M12-Mount AI Camera Professional Optical Expansion Kit: Multi-FOV M12 Lens Bundle (20° to 180° HFOV)
SKU
LK006
- Check Arducam IMX500 M12-mount AI Camera Module here: B0670
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Engineered specifically for the Arducam IMX500 M12-mount AI Camera ecosystem, this curated lens collection is designed to meet the rigorous demands of high-performance AI vision applications. The kit features six premium M12-mount lenses with FOVs ranging from a sharp 20° telephoto to a panoramic 180° fisheye, providing unparalleled flexibility for various deployment environments. Each lens has been rigorously validated to ensure edge-to-edge clarity and optimal light transmission for the IMX500 sensor. By simplifying lens selection, Arducam empowers developers to focus on algorithm performance, while we handle the optical precision.
Features
Arducam IMX500 M12-mount AI Camera supports a versatile range of industrial-grade M12 lenses to perfectly match your target distance and scenery:- 20° HFOV Telephoto: For long-distance detail magnification.
- 50° HFOV Low-Distortion: For precision metrology and scanning.
- 72° HFOV Standard: Balanced FOV for general machine vision.
- 88° HFOV Wide-Angle Low-Distortion: Expanded view without geometric warping.
- 140° HFOV Ultra-Wide: Larger Field of view for humannoid robots, etc.
- 180° HFOV Fisheye: Maximum situational awareness and panoramic tracking.
Specifications
| SKU | LN036 | LN024 | LN053 | LN033 | LN056 | LN031 |
|---|---|---|---|---|---|---|
| Part No: | M2025ZM02 | M2306ZM13 | M23390H08 | M23356H09 | M23272M14 | M25156H18 |
| Optical Format | 1/2.3” | 1/2.3” | 1/2.3” | 1/2.3” | 1/2.3” | 1/2.3” |
| EFL(mm) | 25 | 6 | 3.9 | 3.56 | 2.27 | 1.56 |
| BFL(mm) | 5.2 | 7.56 | 4.49 | 5.92 | 3.01 | 4.3 |
| Construction | 6G | 6G+IR | 6G+IR | 4G3P+IR | 8G+IR | 6G+IR |
| F/NO | 2 | 2 | 2.8 | 2.5 | 2.5 | 2 |
| HFOV on IMX500 AI Cam | 20° | 50° | 75° | 90° | 140° | 180° |
| IR filter | No IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter |
| MOD | 0.20m | 0.30m | 0.30m | 0.20m | 0.20m | 0.20m |
| Dimension(mm) | 17 x 21 | 16x 16.41 | 14x 18.67 | 14x 16.3 | 17.2x 22 | 20x 17.3 |
Package Including
- 1pcs 1/2.3" M12 180° HFOV fisheye optical Lens
- 1pcs 1/2.3" M12 140° HFOV wide angle optical Lens
- 1pcs 1/2.3" M12 90° HFOV wide angle optical Lens
- 1pcs 1/2.3" M12 75° HFOV optical Lens
- 1pcs 1/2.3" M12 50° HFOV optical Lens
- 1pcs 1/2.3" M12 telephoto 20° HFOV optical lens
Note
- The package contains small contents; please keep it away from children to avoid accidental ingestion.
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
Documentation
Related Product

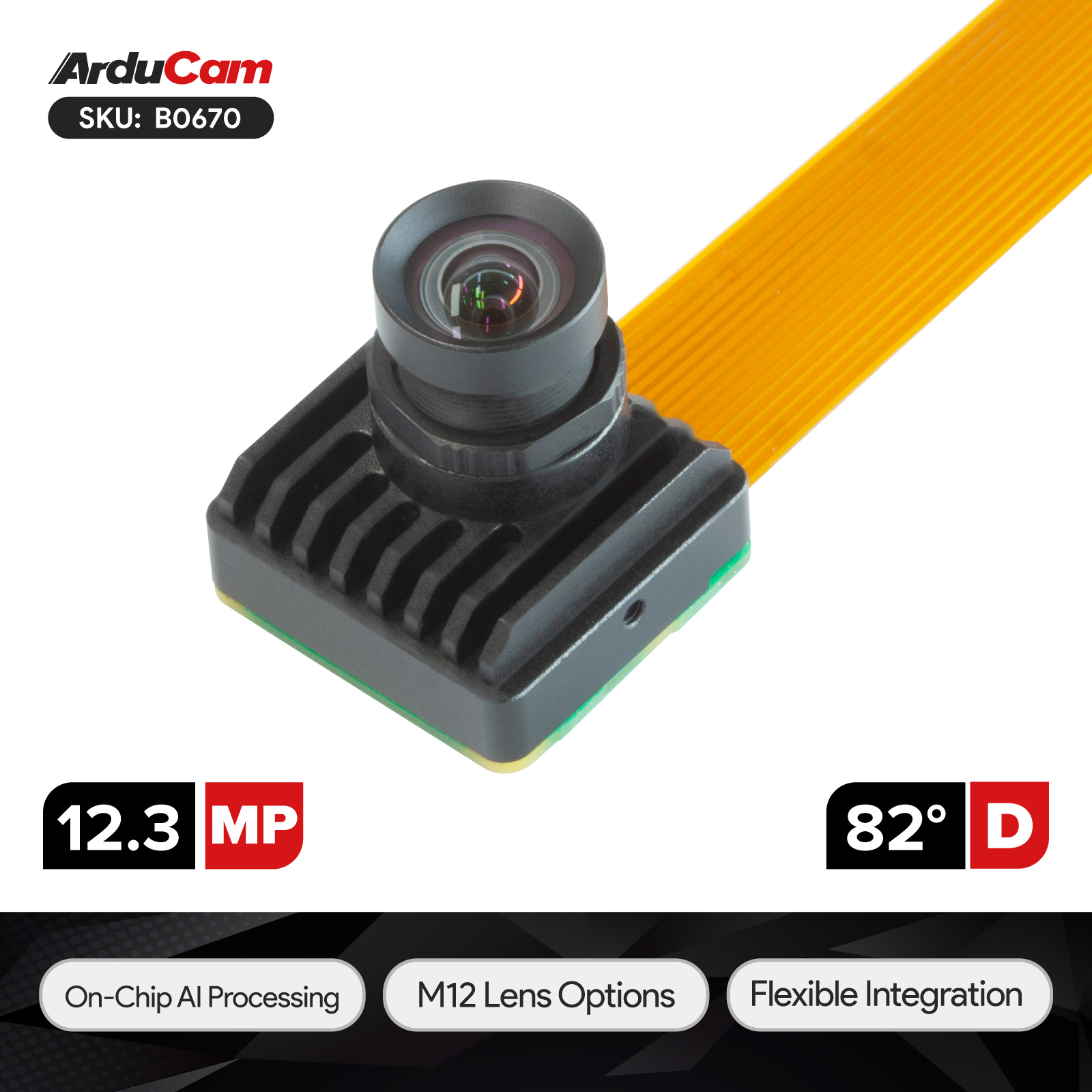

B0670-Arducam IMX500 M12-mount AI Camera
