Discontinued, check alternative item B0200.

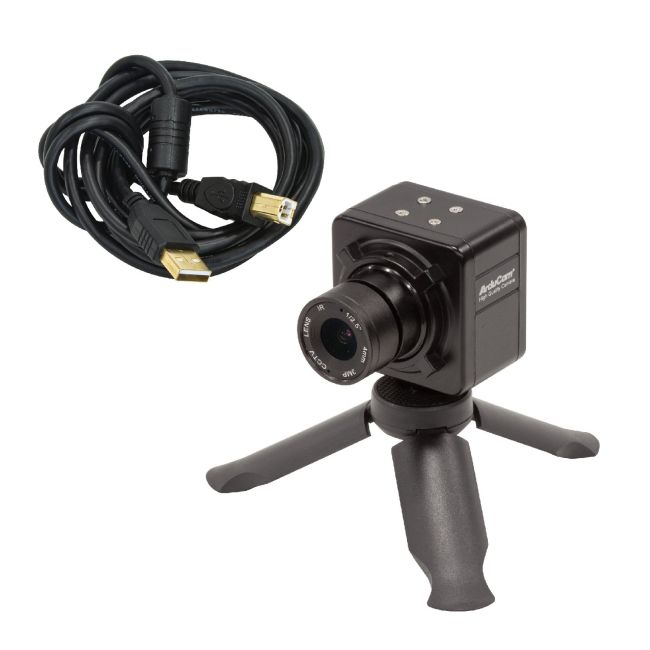

This 2MP manual focus USB Camera is based on a 1/2.8” IMX291 image sensor, low illumination, UVC compliant USB 2.0 cameras.
No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.
HD resolution meets your request for higher quality video still pictures resolution.
【HD 1080P USB Camera】 This USB camera features a true 1080P CMOS IMX291 image sensor that provides crisp, colorful and quality video and images at maximum resolution 1947(H) x 1109(V). Built-in a single microphone allows you to record and share vivid video. Auto white balance, and auto-exposure control, compression format: MJPG / YUY2/H.264.
【4mm Manual Focus Video Camera Lens】 CS mounted 4mm focus camera with IR-cut filter@650nm provides a field of view 70°(H). The minimum identification distance will only be around 10mm, manually adjustable focal length provides you with an ultra-clear image detail to reflect a more realistic environment.
【HDR and Low Light】 Up to 96dB high dynamic range and 0.001Lux low light correction technology, HD CCTV camera always makes you look best in any lighting environment, from low-light to direct sunlight to a high contrast environment.
【Plug & Play】 Ready to use, this tiny camera comes with an aluminum case and mini tripod, just connect to a PC computer, laptop, desktop with the USB cable. UVC-compliant, no extra drivers needed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
【Applications】 This web camera is highly recommended for industrial systems, video surveillance systems, live streaming, indoor security camera system, baby monitoring, video conference, dashcam, and other video vision applications that need high frame rates with high resolution.
Camera
Sensor: 1/2.8” IMX291 Resolution: 2MP 1947(H) x 1109(V)
Data Format: MJPG/YUY2/ H.264
Lens
Field of View (FOV): 70°(H)
Focusing Range: 4mm
IR Sensitivity: Integral IR filter, visible light only
Functionality and Compatibility
Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
Audio: Single microphone
System Compatibility: Windows, Linux, Android and Mac with UVC
Power
Power Supply: DC 5V
Working Current: MAX 300mA
Physical
Operating Temp.: -4°F~158°F (-20°C~+70°C)
Dimension: 50x56x65mm
Cable Length: 3.3ft (1M)
Manual.pdf
Datasheet.pdf
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
