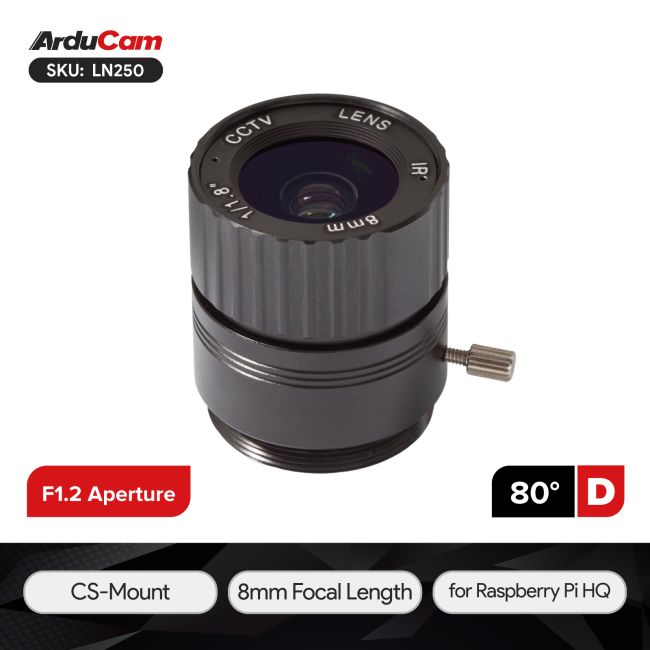

Arducam CS1808ZM06 CS-Mount Lens for Raspberry Pi HQ Camera, 8mm Focal Length with Manual Focus
SKU
LN250
- It Just Works – No lens shading, no dark corners, decent image quality, mount the lens and use it.
- The Wise Alternative – Another cost-effective choice that adds up to you Raspberry Pi High Quality Camera Module, with 8mm focal length and manual focus
- Key Specs – 50 degrees Horizontal Field of View (HFoV), 1/1.8″ Lens Optical Format, F/1.2 large Aperture, with Dimension: Φ28×28mm, Weight: 55.6g.
- Qualified Arducam – Arducam has been selecting and testing CS-mount lenses for the Raspberry Pi cameras since the V1 camera era. Check B0032 if you want a 5MP Pi camera with CS Lens, and check B0153 for the 8MP Pi cameras with CS lenses.
- Check Arducam CS-Mount Lens Kit here: LK004
$16.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
In order to meet the increasing demands of the lens to work with Raspberry Pi High Quality Camera or other larger optical size cameras, Arducam selected and tested a wide range of lenses on RPI HQ cameras. This 1/1.8″ optical format CS-Mount Lens is excellent for RPI HQ Camera, with 8mm focal length and F1.2 large aperture. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future. Without lens shading, no dark corners, decent image quality, it just works. It is another cost-effective choice that adds up to you Raspberry Pi High Quality Camera Module.What’s more, if off-the-shelf optical solutions don't meet your needs, Arducam offers end-to-end custom camera and lens design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
Specifications
| Optical Specs | |
| Focal Length | 8mm±5% |
| Optical Format | 1/1.8'' |
| Aperture | F1.2±10% |
| 35mm Equivalent Focal Length for RPI HQ Camera | 44mm |
| FOV(on Raspberry Pi HQ Camera) | 80°(D)x50°(H)x30°(V) |
| Wavelength Coverage | 420~1000nm |
| Lens Construction | 6G |
| Mechanical Specs | |
| Mount | CS-Mount |
| M.O.D | 0.3M |
| BFL | 12.53mm |
| Weight (Net) | 55.6g | Control Specs |
| Iris Operation | Fixed |
| Focus Operation | Manual |
| Zoom Operation | Zoom Operation |
| Standard and Certifications | |
| Temperature range (Operating) | -4°F-176°F (-20°C to +80°C) |
| Certification | RoHS |
Package Including
- 1 x 1/1.8" CS-Mount 8mm Focal Length lens for Raspberry Pi Cameras
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
