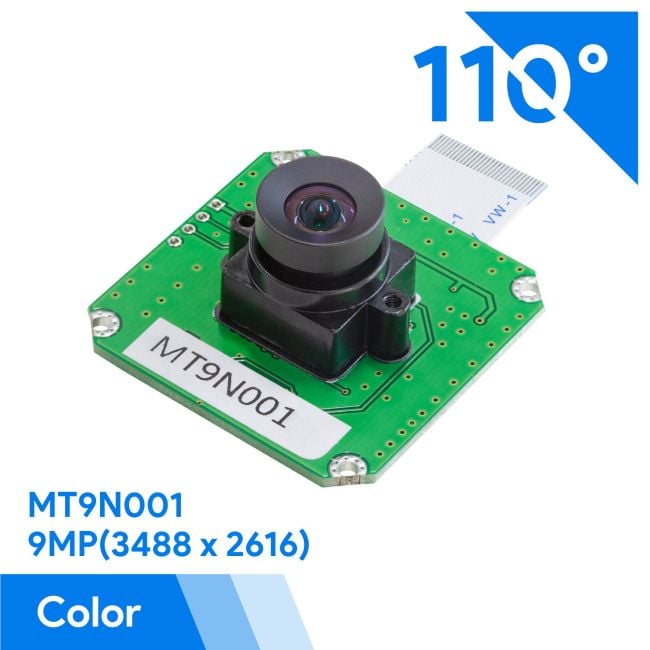

Arducam 9MP MT9N001 Color Arducam CMOS 1/2.3-Inch Camera Module
SKU
B0098
9MP MT9N001 Color Arducam CMOS 1/2.3-Inch Camera Module
Parallel camera interface.
$39.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The MT9N001 camera module features DigitalClarity—Micron’s breakthrough low-noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS. 1/2.3" 9MP (3488 x 2616) CMOS color rolling shutter with global reset release camera module MT9N001. World-Class 1.75μm Pixel Sensitivity, Produced on Aptina’s world-class 1.75μm pixel with Aptina A-Pix technology, this high-resolution, highly sensitive compact sensor is perfect for DSC/DVC designs. Improved Low Light Performance Equivalent level as CCD sensor to support DSC applications. Preprocessing Features, including resampling for sub-sampled video and 2D defect correction, provide improved image quality.
Features
- 1/2.3" optical format
- RGB Bayer pattern
- 9MP 3488 x 2616 MT9N001 sensor
- 1.75 x 1.75 um Pixel size
- 9.7fps at full resolution
- 0.44V/lux-sec responsivity
- 62.7dB dynamic range
- single 3.3V power input
- Parallel camera interface
- Default M12 mount 4.2mm LS-18023 lens
Applications
- Digital video cameras
- Digital still cameras
- Industrial camera
- Medical camera
- Microscopy camera
- UAV camera
Package including
- 1pcs Arducam CMOS MT9N001 1/2.3-Inch 9MP Color Camera Module
- NOTE: Please note that camera module only can be used together with Arducam USB shield.
Please check the following link: http://www.uctronics.com/arducam-usb-camera-shield.html
Documentation
Camera Breakout Board Introduction
Arducam now offers the camera breakout boards for customers who want to build prototypes or put the boards into their products. Users don’t need to handle with the tiny and fine pin pitch camera module connector and high speed signal connectivity, just take it for granted. The camera resolution is ranging from 0.3MP to 16MP […]
User guide.pdf
Application note.pdf |
Blog
Arducam USB3.0 Camera Shield
Introduction Arducam USB3 camera shield is the latest USB3.0 camera shields, it offers the improved performance and enhanced functions than the previous USB2.0 camera shield. It not only supports high resolution and high frame rate image sensors, but also supports stereoscopy camera and IRCUT control feature. With the given camera configuration files, user can switch […]
Github
How to purchase
You can purchase this item from Arducam distributors
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
