[Discontinued] 5-50mm Varifocal Lens USB Camera, 1080P@30fps WDR Webcam with 1/2.7" HD CMOS AR0230 Sensor for Computer, Laptop, Desktop-Arducam

Overview

Arducam 5-50mm Varifocal Lens USB Camera, 1080P@30fps WDR Webcam with 1/2.7" HD CMOS AR0230 Sensor for Computer, Laptop, Desktop

Features

• HD 1080P Webcam: This USB camera adopts a high-quality COMS AR0230 Color sensor for sharp image and accurate color reproduction. Max resolution: 1928X1080, High frame rate 1080P@30fps, Compression format: MJPG / YUY2; Saturation, Contrast, White balance adjustable.
• 5-50mm Optical Zoom: 5-50mm varifocal lens with an IR-cut filter@650nm provides a wide field of view from 40° to 8° by adjusting the focal length, giving you different sizes of images and scene ranges.
• HDR & WDR: Up to 96dB wide dynamic range with high frame rate 1080P@30fps, this webcam produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications.

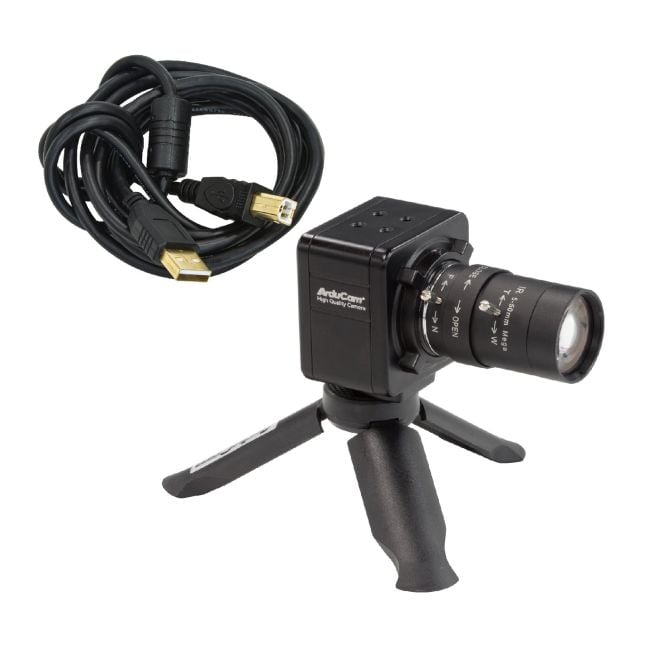

• Plug & Play: Ready to use, this camera bundle comes with a metal case and mini tripod, just connect to a PC computer, laptop, or desktop with a USB cable, no need to install any driver software, allowing you easily take it everywhere.
• Applications: UVC-compliant, widely compatible with Mac OS, Windows 7, 8, 10 /Android/ Linux. Highly recommended for the video surveillance system, live streaming, video conference, dashcam, and other video vision applications need high frame rates with high resolution.

SPECS

Camera

- Sensor: 1/2.7” AR0230

- Resolution: 1928(H) x 1088(V)

- Data Format: MJPG/YUY2

- Frame Rate: MJPG 30fps@1080P/720P/1280 x 1024/800 x 600/640 x 480; YUY2 5fps@1080P/720P; 20fps@800 x 600/960 x 540; 30fps@640 x 480

Lens

-Field of View (FOV): 40°-8°

- Lens Mount: CS

- Focal Length: 5-50mm

Functionality and Compatibility

- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.

- System Compatibility: Windows, Linux, and Mac with UVC

Power

-Power Supply: USB powered 5V

-Working Current: MAX 300mA

Physical

-Operating Temp.: -4°F~158°F (-20°C~+70°C).

-Dimension: 50mmx50mmx80mm

-Cable Length: default 6.56ft (2M)

Documentation

Manual.pdf

Datasheet.pdf
