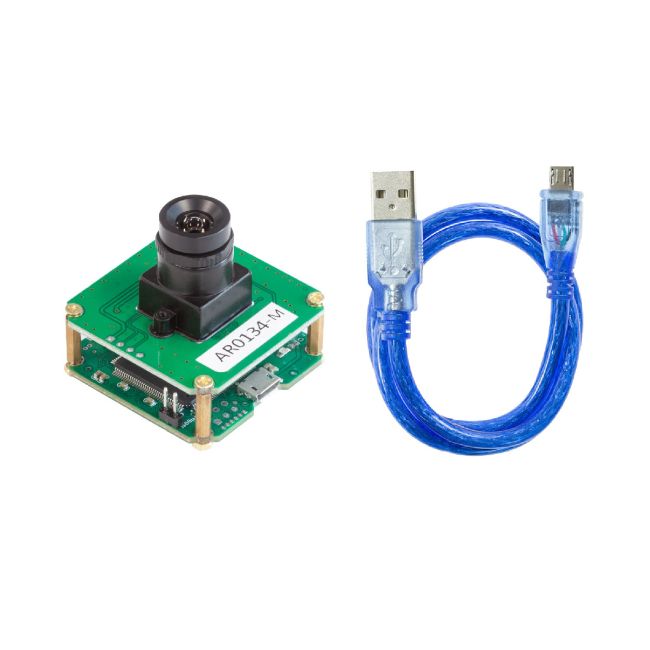

[Discontinued] Arducam AR0134 1.2MP Global Shutter USB Camera Evaluation Kit - CMOS 1/3-Inch Monochrome Camera Module with USB2 Camera Shield

Overview

To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The AR0134 module is a 1/3 inch 1.2MP global shutter monochrome camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.

High frame rate, high dynamic range, good sensitivity for machine vision with external trigger.

Features

• 1/3" optical format
• 1.2MP 1280 x 960 AR0134 global shutter sensor
• 3.75 x 3.75 u Pixel size
• 54fps at full resolution
• 5.3V/lux-sec responsivity
• 64dB dynamic range
• single 3.3V power input
• Parallel camera interface
• M12 mount lens

Applications

• Security
• High dynamic range imaging
• Unattended surveillance
• Stereo vision
• Machine vision
• Automation

Documentation:

Datasheet_sensor.pdf
