[Discontinued] Arducam 70 Degree M12 Lens Bundle for Raspberry Pi HQ Camera, with Portable Tripod Stand and 2ft/60cm Black Camera Cable

Overview

In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to wide angle for shooting on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.

If you want to grab all the available S-mount lenses for the HQ camera, Arducam has also got a 6-in-1 M12 lens bundle here.

Features

• They Just Work - We’ve tested this lens, the camera cable and the tripod stand on the 12MP RPi HQ Camera. With them, you can get decent quality image and release your hands.
• The M12 Lens - 70 degree HFOV (horizontal field of view), another cost-effective choice that adds up to your Raspberry Pi High Quality Camera Module.
• The Tripod Stand - Pocket size and lightweight, 1/4”-20 mounting screw, hassle-free fitting the RPi HQ Camera Board.
• The Camera Cable - 60cm/2ft length, 15 Pin 1.0mm Pitch interfaces, black color and long enough, goes well with 3D printers OctoPrint setup and Raspberry Pi High Quality Camera.

Lens Specification

• Model No: M23390H08
• Optical Format: 1/2.3”
• Focal Length: 4.3mm
• Aperture: F2
• Field of View (FOV): 70° (H) on Arducam High Quality Camera, 45°(H) on Raspberry Pi V1/V2 Camera
• Mount: M12 mount
• Back Focal Length: 3.62mm
• MOD: 0.3m
• Dimension: Φ14×19.58mm
• Weight: 8g
• IR Sensitivity: sensitive to visible light, with 650nm IR filter

Other Arducam S-mount lens bundles with different FoVs

• Lenses under 50 degree: 20° HQ Camera Lens Bundle, 50° HQ Camera Lens Bundle.
• Wide Angle and Fisheye Lenses: 90° HQ Camera Lens Bundle, 140° HQ Camera Lens Bundle, 180° HQ Camera Lens Bundle.

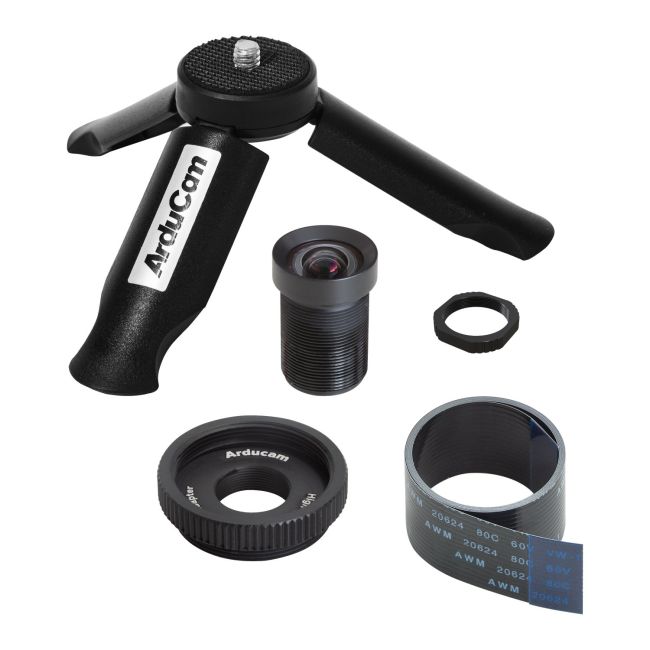

 Package Including

• 1pcs 1/2.3″ M12 70degree camera Lens
• 1pcs Tripod Stand
• 1pcs 15pin 60cm/2ft Camera Cable
• 1pcs M12 lens adapter
• 1pcs M12 lens locking ring

How to Purchase

You can purchase this item from Arducam distributors or Arducam’s Amazon store
