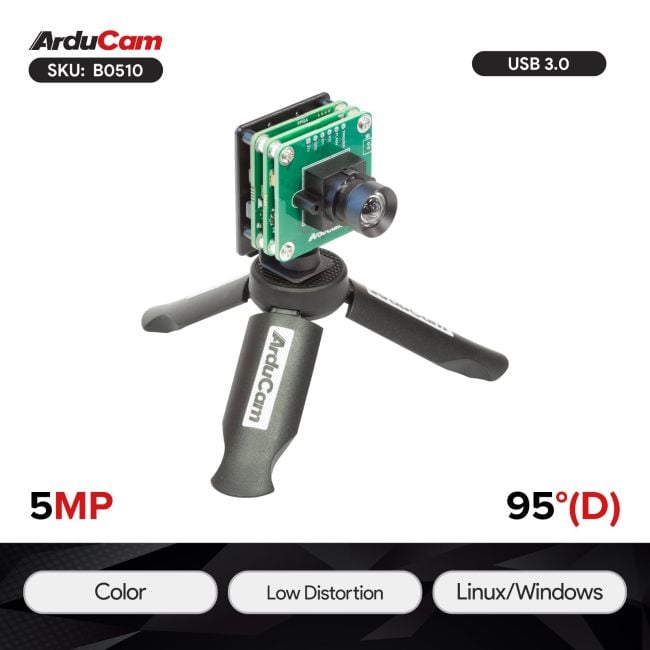

Arducam 5MP AR0521 Color USB 3.0 Camera Module
SKU
B0510
- Arducam AR0521 boasts a 5MP low noise sensor for crisp detail at 2592×1944 resolution.
- Flexible frame rates up to 1080p60 adapt to any capture scenario.
- M12 lens with 95°(D) FOV, low distortion, and ensure clarity in varied environments.
- On-board ISP with proprietary tech guarantees top-tier image enhancement.
- Plug-and-play compatibility with Windows and Linux, no additional drivers needed.
As low as
$139.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam's latest innovation in imaging technology, the AR0521 color USB camera. Engineered as part of the Arducam USB 3.0 cameras series, this cutting-edge device boasts the prowess of the AR0521 sensor, a 5 MP powerhouse with a pixel size of 2.2 μm x 2.2 μm.
With an impressive Signal-to-Noise Ratio (SNR), this camera ensures minimal noise even in challenging conditions, guarantees breathtaking image fidelity across diverse lighting scenarios. Thanks to the integration of a low-distortion lens, the AR0521 captures scenes with remarkable accuracy, offering users an authentic visual experience like never before.
Arducam's latest USB 3.0 camera excels in user-friendly plug-and-play functionality. Compatible with Windows and Linux, no additional drivers are needed, simplifying setup. Its backward compatibility with USB 2.0 host ports ensures seamless connectivity and flexibility for an enhanced user experience.
Applications
- Machine Vision
- Video Surveillance
- 3D Scanning and Metrology
- Live Streaming
- Video Conferencing
Features
- Crisp Clarity: With a high SNR 5MP AR0521 sensor, achieve a maximum still resolution of 2592x1944 for guaranteed clarity in every shot.
- Flexible Capture: Enjoy flexible frame rates programmable up to 1080p60. M12 lens with low distortion, fixed focus, and a 95°(D) field of view ensures monitoring clarity.
- Enhanced Performance: Low noise performance with low distortion m12 lens expands imaging possibilities, delivering exceptional performance even in challenging lighting conditions.
- Proprietary on-board ISP: de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV.
- Plug and Play: Seamless compatibility with Windows and Linux, plug-and-play functionality eliminates the need for additional drivers.
Specifications
| Image Sensor | |
| Sensor | AR0521 |
|---|---|
| Still Resolution | 5 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.5" |
| Output Format | YUY2 |
| Pixel Size | 2.2× 2.2 μm |
| Sensor Active Area | 2592 × 1944 |
| Frame Rate (USB 3.0) | 2592x1944@30fps, 1920x1080@60fps |
| Frame Rate (USB 2.0) | 1920x1080@10fps | Lens |
| Focus Type | Fixed Focus |
| Default Focus Range | 1m-∞ |
| FOV | 95°(D) × 81°(H) × 65°(V) |
| Lens Mount | M12 (S-mount) |
| F.NO | F2.8 |
| E.F.L | 3.6mm |
| IR Sensitivity | Integral IR-cut filter, visible light only |
| USB Interface | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.6W , Min: 0.9W |
| Camera Board Size | 34×34 mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Exposure (Manual/Auto) |
Package Including
- 1 x AR0521 USB3.0 Camera with Back Cover and Tripod Mount
- 1 x 1m USB A to Type-C Cable
