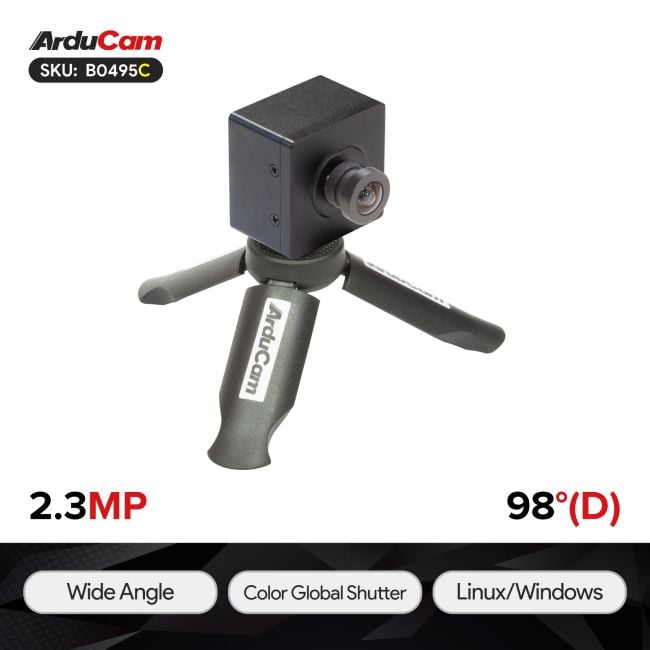

Arducam 2.3MP AR0234 Color Global Shutter USB 3.0 Camera Module-With Enclosure
SKU
B0495C
- Plug and play
- Based on 2.3MP AR0234, maximum still resolution of 1920*1200
- Proprietary on-board ISP advances image enhancement
- Color Global Shutter with Programmable frame rates, reach up to 80fps@960×600
- M12 manual focus lens for Precision focus and wide 95°(D) view.
$154.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam's USB 3.0 camera series presents the AR0234 color global shutter model. Featuring a 1/2.6" 2.3MP CMOS, it attains a max still resolution of 1920x1200. Now supporting YUYV format output for uncompressed, high-quality images. The global shutter and rapid 80 fps frame rate ensure silky smooth HD video.
The camera boasts an M12 low-distortion lens with a 95° diagonal field of view, delivering more accurate, distortion-free images.
Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.
Applications
- Machine Vision
- Video Surveillance
- 3D Scanning and Metrology
- Live Streaming
- Video Conferencing
Features
- Outstanding Imaging: Utilizes a 2.3MP Global Shutter AR0234 sensor for sharpness, achieving a max still resolution of 1920x1200.
- Fast and Precise: Flexible Frame Rates, programmable up to 960x600@80fps. M12 lens with low distortion, manual focus, and a 95°(D) field of view for monitoring clarity.
- Color Global Shutter: Capture crisp images of high-speed motion, free from rolling artifacts.
- Advanced Image Enhancement: On-board ISP with proprietary tech ensures top-tier image quality through de-Bayer, gamma, BLC, AE, AWB, CCM, and RGB2YUV processes.
- Plug and Play: Seamless compatibility with Windows and Linux, plug-and-play functionality eliminates the need for additional drivers.
Specifications
Lens
| Image Sensor | |
| Sensor | AR0234 |
|---|---|
| Still Resolution | 2.3 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Global Shutter |
| Optical Size | 1/2.6" |
| Output Format | YUY2 |
| Pixel Size | 3 µm x 3 µm |
| Sensor Active Area | 1920(H)×1200(V) |
| Frame Rate (USB 3.0) | 1920*1200@50fps, 960*600@80fps |
| Frame Rate (USB 2.0) | 960*600@10fps |
| Focus Type | Manual Focus |
| FOV | 98°(D)×85°(H)×69°(V) |
| Lens Mount | M12 |
| F.NO | F2.5 |
| E.F.L | 3.56mm |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Default Focus Range | 2m-∞ |
| USB Interface | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.45W , Min: 0.92W |
| Camera Board Size | 34×34 mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Exposure (Manual/Auto) |
Package Including
- 1 x AR0234 USB3 Camera with Back Cover and Tripod Adapter
- 1 x 1m USB A to Type-C Cable
Note
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
