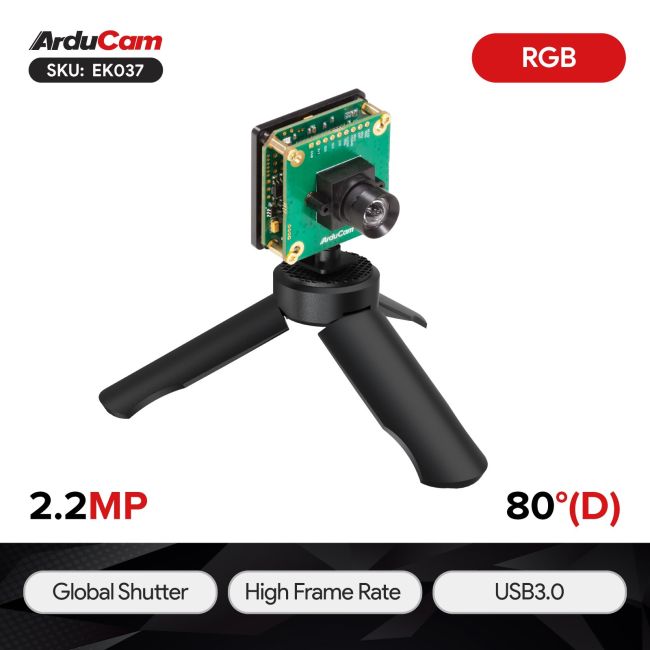

Arducam 2.2MP Mira220 RGB Global Shutter USB3.0 Camera Evaluation Kit
SKU
EK037
- Based on mira220, 1/2.7” 2.2MP Enhanced Global Shutter Image Sensor.
- High Frame Rate 80fps, Low Distortion M12 lens, High NIR sensitivity.
- USB 3.0 interface: Compatible with any hardware you choose.
- Developer-friendly SDK: & API for easy integration.
$299.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
To help customers evaluate the cameras or build a prototype with their own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The camera evaluation kit is based on the Mira220, an enhanced 1/2.7" 2.2MP global shutter image sensor. Its rapid evaluation setup includes an immediately available camera and adapter kit, which, together with the Arducam USB Camera Shield UI tool, ensures a seamless integration experience for developers.
Capable of high frame rates up to 80fps, the Mira220 specializes in capturing fast-paced scenes with exceptional clarity. The USB 3.0 interface ensures compatibility with a wide range of hardware, providing flexibility for a variety of applications. The addition of a low-distortion M12 lens enhances its adaptability to different imaging scenarios. Developers will appreciate the kit's user-friendliness, featuring developer-friendly SDKs and APIs for easy integration into existing projects. In addition, the Mira220 features high NIR sensitivity, making it ideal for applications that require enhanced performance in low-light conditions.
Applications
- Mobile Facial Authentication
- Active Stereo Vision/Structured Light Vision
- Automatic Identification and Data Capture (AIDC)/QR Readers/Drones
- Smart Home Appliances
- SLAM for Robotics/Smart Home Appliances
Features
- Enhanced Global Shutter CMOS: Built on Mira220's 2.2 MP sensor, excels in 2D/3D machine vision with global shutter and BSI technology, delivering superior image quality.
- Speedy Capture: Mira220 achieves a maximum frame rate of 80 fps, enabling real-time imaging for dynamic applications.
- Low-Distortion M12 Lens: Enhanced with a high-res M12 lens, ensuring crisper images.
- High NIR Sensitivity: Classing leading QE at 940 nm, ideal for challenging lighting conditions.
- Effortless Integration: The camera & adapter bundle, paired with a USB 3.0 interface, offers quick evaluation, seamless integration, and user-friendly adjustments for diverse applications.
Specifications
| Sensor Features | |
| Sensor | Mira220 |
|---|---|
| Still Resolution | 2.2MP |
| Color Filter Type | RGB |
| Shutter Type | Global Shutter |
| Optical Size | 1/2.7" |
| Sensor Output Format | RAW12 (RGB) |
| Pixel Size | 2.79μmx 2.79μm |
| Sensor Active Area | 1600(H)×1400(V) |
| Frame Rate | 1600x1400@30fps, 640x480@80fps |
| Exposure Control Range | 12us-33333us |
| Gain Control Range | Not Support |
| Lens | |
| Focus Type | Manual Focus |
| FOV | 80°(D)*68°(H)*53°(V) |
| Lens Mount | M12 Mount |
| F.NO | F2.8 |
| E.F.L | 3.6mm |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 0°C to 50°C |
| Power Requirements | Max: 1.32W |
| Evaluation Kit Size | 38mmx38mm | Functionality and Compatibility |
| Image File Format | DNG/JPEG |
| Software ISP | Not Supported |
| Supported Programming Languages | Python/C++ |
| Supported OS | Windows x86/x86_64 |
| GUI(Graphical User Interface) | Supported | Optional Items |
| Random Resolution | These additional functions require customized services to get supported. Please contact [email protected] for customization services. |
| Even Higher/Lower Frame Rate | |
| More RAW Output Format Options(RAW10) | |
| Long Exposure | |
| External Trigger Mode | |
Package Including
- 1 x Mira220 RGB USB3 Camera Evaluation Kit with Back Cover and Tripod Adapter
- 1 x 1M USB Cable
Note
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description
- You will need corresponding configuration files to use the camera kit with Arducam USB Camera Shield GUI, please get in touch with [email protected] for the files.
- Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
