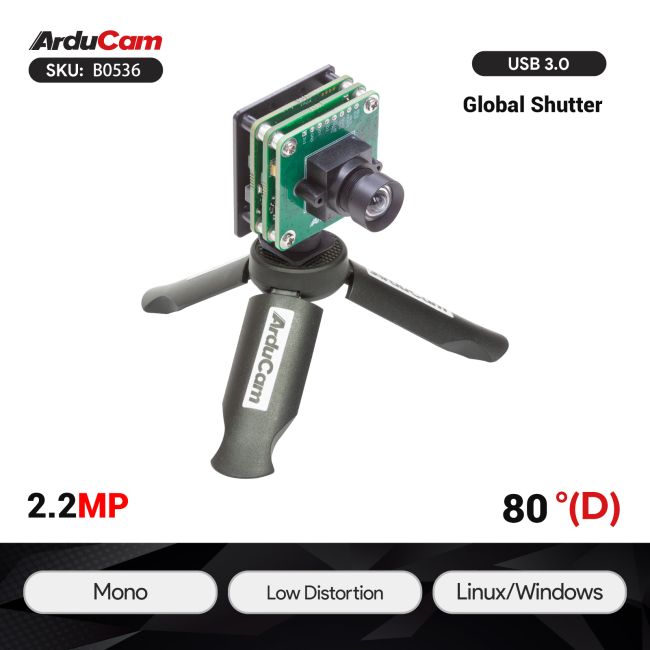

Arducam 2.2MP Mira220 MONO Global Shutter USB 3.0 Camera-Without Enclosure
SKU
B0536-1
- 1/2.7″ 2.2MP mono NIR-enhanced global shutter image sensor (Mira220)
- Up to 80fps with low-distortion M12 lens and high NIR sensitivity
- Leading QE performance at 940nm
- Enhanced image quality with advanced on-board ISP
- USB 3.0, UVC compliant, plug-and-play, no drivers needed
$149.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam UVC3.0 Global Shutter Series Mira220 USB 3.0 camera features a 1/2.7" 2.2MP NIR-enhanced global shutter sensor, delivering Class-leading QE at 940nm. Designed for low-light environments, this camera provides exceptional clarity for high-demand imaging applications.
With support for frame rates up to 80fps, the Mira220’s low-distortion M12 lens captures sharp, distortion-free images, even in fast-moving scenes. Advanced ISP technology enhances image quality through debayering, gamma correction, and color correction, ensuring accuracy and vibrant detail.
Enjoy easy plug-and-play functionality on Windows and Linux with USB 3.0 compatibility—no drivers required. Backward compatible with USB 2.0, the Mira220 provides versatile and reliable performance, making it ideal for high-speed imaging needs and professional results.
Applications
- Mobile Facial Authentication
- Active Stereo Vision/Structured Light Vision
- Automatic Identification and Data Capture (AIDC)/QR Readers/Drones
- Smart Home Appliances
- SLAM for Robotics/Smart Home Appliances
Features
- Enhanced Global Shutter CMOS: The 2.2MP Mira220 mono image sensor, combines global shutter and BSI technology for outstanding image quality.
- Fast Capture: Supports up to 80fps for real-time imaging in dynamic applications.
- Low Distortion M12 Lens: High-resolution M12 lens delivers sharper, clearer images.
- High NIR Sensitivity: Industry-leading QE at 940nm, ideal for low-light conditions.
- Advanced On-Board ISP: Enhances image quality with de-Bayer, gamma correction, AE, and RGB2YUV conversion.
Specifications
| Image Sensor | |
| Sensor | Mira 220 |
| Still Resolution | 2.2MP |
| Color Filter Type | Mono |
| Shutter Type | Global Shutter |
| Optical Size | 1/2.7" |
| Output Format | YUY2 |
| Pixel Size | 2.79μmx 2.79μm |
| Sensor Active Area | 1600(H)×1400(V) |
| Frame Rate (USB 3.0) | 1600*1400@30fps, 640*480@80fps |
| Frame Rate (USB 2.0) | 640*480@10fps | Lens |
| Focus Type | Manual Focus |
| FOV | 80°(D)×68°(H)×53°(V) |
| Lens Mount | M12 (S-mount) |
| F.NO | F2.8 |
| E.F.L | 3.6mm |
| IR Sensitivity | No IR-cut filter, sensitive to IR |
| Default Focus Range | 1m-∞ |
| USB Interface | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.4W |
| Camera Board Size | 34×34 mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Exposure (Manual/Auto) |
Package Including
- 1 x Mira220 MONO USB3 Camera with Back Cover and Tripod Adapter
- 1 x USB A to Type-C Cable (1m)
Note
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description
- Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
