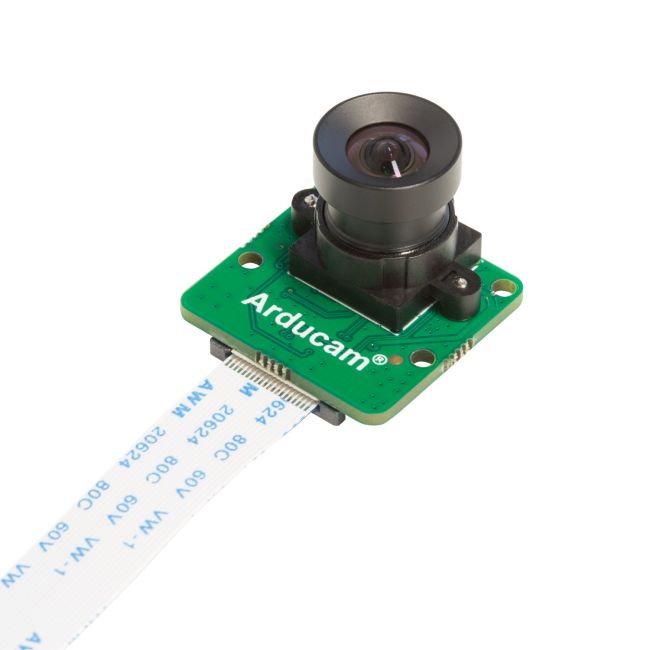

Arducam 1MP OV9782 Global shutter color MIPI camera module 20pin for DepthAI OAK-FFC-3P-OG
SKU
B0296
$54.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam 1MP OV9782 Global shutter color MIPI camera module is designed for DepthAI OAK,
Supported DeptAI version: OAK-FFC-3P-OG (BW1098FFC R0M0E0)
Specifications
- Sensor: Color global shutter OV9782
- Pixel Size: 3 μm x 3 μm
- Active array size: 1280 x 800
- Optical Size: 1/4 inch
- Focusing Range: 20cm ~ infinite
- IR Sensitive: With IR filter, sensitive to Visible light
- Output interface: MIPI 2-Lane
- Output formats: RAW8/RAW10
- Maximum image transfer rate: 1280 x 800@120 fps
- Board Size: 24mm x 25mm
- Lens: Default low distortion M12 lens (Part Number: M27280M07S)
- EFL: 2.8mm
- F.N: 2.8
- HFOV: 75 Deg
Package Including
- 1 pcs Arducam 1MP OV9782 Global shutter color MIPI camera module 20pin for DepthAI OAK
- 1 pcs 150mm 20pin-20pin FPC cable(same side)
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
