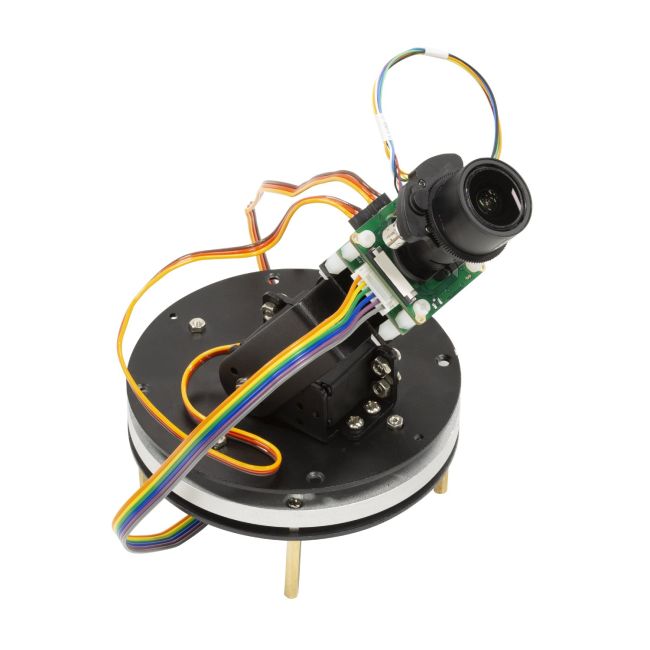

[Discontinued] Arducam 13MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3, IR-Cut Switchable Camera with Metal Base and 2 Digital Servos
SKU
B0167B13
Check alternative camera B0167B12
- You’ll be Getting: A pre-assembled metal platform, an IR-CUT switchable 13MP camera assembled with a camera control board and camera board, cables for camera connection. It just needs easy cable and wire connection to use.
- PTZ Camera: PTZ is an abbreviation for pan, tilt, and zoom, and a pan–tilt–zoom camera (PTZ camera) is a camera that is capable of remote directional and zoom control, so a single PTZ camera can be used to monitor places that should be covered by multiple ones.
- All-day Sharp Image: The camera adopts 13MP AR1335 Sensor for sharp image, Max. still resolution is 4160×3120; A switchable IR-CUT filter is also built-in, switched on by default for visible light mode, switchable via software for infrared light mode, get clearer image all day.
- 2 DoF Camera Bracket: The high quality ready-to-use 2 Degrees of Freedom rotary base makes the setting up become much easier, which is equipped with 2 DS-3115MG digital servos, so as to moves the camera freely for 180-degree in both horizontal and vertical direction, can be also extended for other 5MP 8MP and 12.3MP raspberry pi cameras.
- Application: This cost-effective and flexible PTZ camera performs better in Day&night vision security camera system, motion detection, wildlife photography and other machine vision projects. Doc Link: https://www.arducam.com/docs/cameras-for-raspberry-pi/ptz-camera/13mp-ptz-camera/
$179.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
PTZ is an abbreviation for pan, tilt, and zoom and reflects the movement options of the camera, and a pan–tilt–zoom camera (PTZ camera) is a camera that is capable of remote directional and zoom control, so it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera. What's more, this kit is based on the IR-CUT switchable 13MP camera to get sharp imaging all day and night.
Specs
- Camera
Sensor: 13MP AR1335
Pixel Size: 1.1um x 1.1um
Resolution: 4160×3120
Optical Size: 1/3″
Frame Rate: 7fps@4160×3120, 11fps@3264×2448/3840×2160, 24fps@2560×1440, 30fps@1600×1200/1920×1080/640×480/320×240
IR sensitivity: Optional with additional Motorized IR-Cut filter
Focus: Front group - focus, Back group - Zoom
Field of View: 91° - 25° (Horizontal)
- PTZ Base
Material: Full metal, aluminum alloy
Shipping Weight: 480g (1.06lb)
Overall Size: 12cm*12cm*13cm(L*W*H)
Package
1pcs Arducam PTZ Pan Tilt Zoom Lens for Raspberry Pi, assembled with a 13MP IR-CUT switchable camera board and camera control board.
1pcs pre-assembled metal base with 2 digital servos
1pcs 15-Pin FPC Cable (11.8 in/30 cm)
1pcs XH2.54 Jumper wire with 6Pin Female Connector (11.8 in/30 cm)
4pcs copper standoffs for the base
Documentation
13MP PTZ Camera
0. Introduction The Arducam 13MP PTZ camera mainly consists of the following two systems: An Arducam 13MP OBISP MIPI Camera Module A driver-board-based PTZ controlling system for Pan-tilt servos and Lens motors (Zoom and Autofocus) It comes in two models with different package items. The following table shows their differences. Camera w/ Zoom Lens PTZ […]
Video
How to Use The Arducam 13MP PTZ Camera Module (Tutorial)
13MP PTZ (Pan-Tilt-Zoom) Camera Module for Raspberry Pi & Jetson Nano/NX (UP to 4K & Night Vision)
