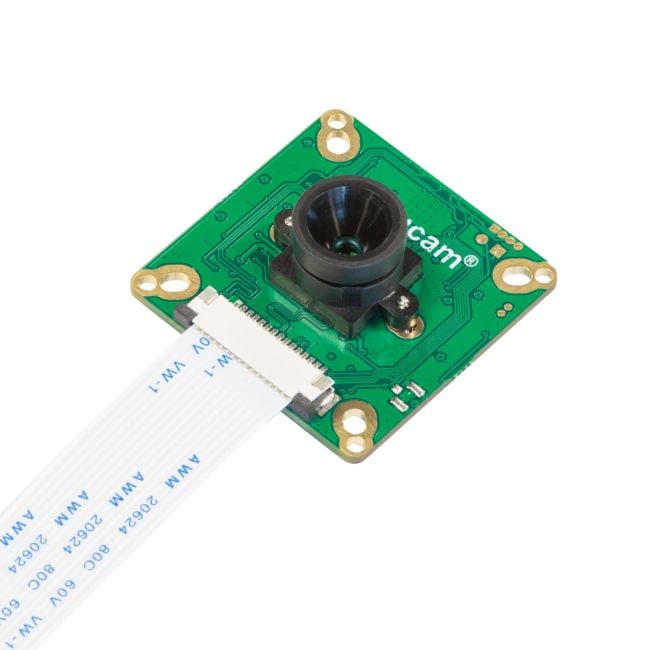

Arducam 13MP MIPI Camera Module with AR1335 OBISP and M12 Mount Lens for Jetson Nano (Jetvariety ISP 13)
SKU
B0277
- Note: This camera module is currently discontinued
$49.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam 13MP OBISP MIPI camera features onboard ISP (Image Signal Processor), it uses standard 15pin MIPI CSI-2 interface, and works seamlessly on Jetson Nano.
⚠️ KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work – one kernel version, one camera driver. Up or downgrading your OS leads to a kernel bump, and you may need to re-install a matching driver.
Applications
- Cellular phones
- Digital still cameras
- PC cameras
- IoT cameras
Features
- Resolution: High Resolution
- Shutter Type: Rolling Shutter
- Color Type: Color
- IR Sensitivity: 650nm IR filter, visible light only.
- Output Interface: 2-Lane MIPI CSI-2
- Output Format: YUV422, RGB888
- ISP Features: AWB, AE, Flip, Mirror, DeNoise, Gamma, Sharpness, Saturation, Contrast Digital Zoom, Digital Pan/Tilt, Speical Effects etc
- Platform Support: Jetson Nano or platform with MIPI CSI-2 interface
Specs
- Sensor Type: 13MP AR1335
- Pixel Size: 1.1um x 1.1um
- Resolution: 4160x3120
- Optical Size: 1/3"
- Lens Spec: M12 Low distortion lens, EFL: 4.73mm, FoV(H): 50°, F/NO:2.2
- Max Data Rate: 1.2Gbps/laneFrame Rate: 7fps@4160x3120, 11fps@3264x2448/3840x2160, 24fps@2560x1440, 30fps@1600x1200/1920x1080/640x480/320x240
- Responsivity: 4.7k e/lux-sec
- SNR(Max): 37dB
- Dynamic Range: 69dB
- Power Consumption: 270mW
- Temperature Range: -10 ~ 70 degrees
- Camera Driver: V4L2 Compliant driver for Jetson Nano
- Board Size: 38mm x 38mm
- Powerline Frequency: 50Hz, fixed
Package Including
- 1pcs Arducam 13MP OBISP Camera Module with M12 Mount Lens
- 1pcs 15pin to 22pin ribbon cable
