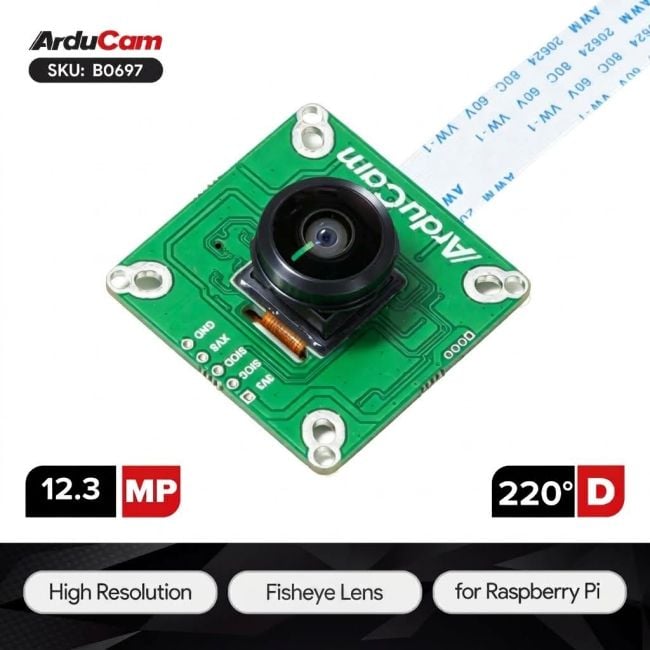

Arducam 12MP HQ 220-Degree Fisheye MIPI Camera for Raspberry Pi
SKU
B0697
- [12.3MP Resolution] Delivers 4056x3040 visuals for high-definition image capture.
- [220° Ultra-Wide] 220-degree fisheye lens captures expansive coverage.
- [High-Speed MIPI] Native MIPI CSI-2 interface ensures fast, low-latency data transmission to Raspberry Pi.
- [Raspberry Pi Ready] Plugs directly into the onboard CSI port for straightforward hardware setup.
- [Customization Options] Offers flexible OEM modifications for alternative lenses and others.
$59.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam 12.3MP HQ Fisheye MIPI Camera Module brings ultra-wide, high-resolution imaging to your Raspberry Pi projects. Powered by the high-performance 12.3-megapixel sensor (4056x3040), it captures rich visual details across a massive 220-degree field of view. Its extreme fisheye perspective eliminates blind spots, making it ideal for comprehensive spatial monitoring. Utilizing the high-speed MIPI CSI-2 interface, this camera integrates seamlessly into the Raspberry Pi platform and is fully supported by Arducam’s OEM customization services for tailored optical and hardware setups.
Applications
- 360° & Panoramic Surveillance: Ideal for whole-room monitoring, smart security domes, and wide-area security coverage.
- Robotics & Obstacle Avoidance: Provides wide spatial awareness and optical flow data for autonomous mobile robots and drones.
- VR & Immersive Media: Perfect for stitching together virtual reality content, hemispherical capturing, and interactive displays.
- Sky & Meteorological Cameras: Captures full-sky imagery for cloud coverage tracking, solar modeling, and astronomy projects.
Features
- [12MP HQ Clarity] Equipped with a premium 12.3-megapixel sensor capturing 4056x3040 resolution, ensuring exceptional image clarity and dynamic range for high-density visual analysis.
- [220° Ultra-Wide Fisheye Lens] Features a specialized 220-degree field-of-view M8 lens that captures full hemispherical scenes, drastically reducing the number of cameras needed for wide coverage.
- [MIPI CSI-2 Connectivity] Transmits raw, high-throughput image data directly to the Raspberry Pi CPU via the MIPI CSI-2 bus, guaranteeing minimal latency and low processing overhead.
- [Seamless Raspberry Pi Setup] Designed specifically for the Raspberry Pi ecosystem, plugging straight into standard CSI ribbon connectors for quick, driver-supported deployment out of the box.
- [Tailored OEM Customization] Supports broad custom tweaks for volume integrators, including interchangeable lens options, optical IR-cut filters, custom flexible cable lengths, and board redesigns."
- [220° Ultra-Wide Fisheye Lens] Features a specialized 220-degree field-of-view M8 lens that captures full hemispherical scenes, drastically reducing the number of cameras needed for wide coverage.
- [MIPI CSI-2 Connectivity] Transmits raw, high-throughput image data directly to the Raspberry Pi CPU via the MIPI CSI-2 bus, guaranteeing minimal latency and low processing overhead.
- [Seamless Raspberry Pi Setup] Designed specifically for the Raspberry Pi ecosystem, plugging straight into standard CSI ribbon connectors for quick, driver-supported deployment out of the box.
- [Tailored OEM Customization] Supports broad custom tweaks for volume integrators, including interchangeable M8 lens options, optical IR-cut filters, custom flexible cable lengths, and board redesigns.
Specifications
| Camera Module | |
| Sensor | IMX477F |
| Resolution | 12.3 Megapixels |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/2.3" |
| Output Format | RAW12 |
| Pixel Size | 1.55 µm x 1.55 µm |
| Sensor Active Area | 4056(H)×3040(V) |
| Sensor Image Area | 6.286 mm x 4.712 mm (7.856 mm diagonal) |
| Frame Rate (on Raspberry Pi) | 4056x3040@10fps, 2028x1520@40fps; 2028x1080@50fps, 1332x990@120fps; |
| Video Mode (on Raspberry Pi) | 2028 × 1080p50, 2028 × 1520p40; 1332 × 990p120; |
| Default Lens | |
| Focus Type | Fixed Focus |
| FOV(DxHxV) | 220°(D)×210°(H)×160°(V) |
| Lens Mount | M8 Mount |
| F.NO | F2.2 |
| E.F.L | 1.23mm |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| F-theta Distortion | <15% |
| Default Focus Distance | 100cm~INF |
| Max CRA | 30°±3% |
| Functionality and Compatibility | |
| Interface | MIPI CSI-2 |
| Supported Platforms | Raspberry Pi Platforms |
| Supported OS | Bullseye/Bookworm/Trixie |
| Supported Software | libcamera, rpicam, Picamera2, etc. |
| Electrical and Mechanical | |
| Operating Voltage | 3.3V |
| Power Consumption | MAX:0.9W |
| Camera Board Size | 38x38mm |
| Camera Overall Weight (Net) | 11g |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +75°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS, CE |
Package Including
- 1 x Arducam 12.3MP IMX477F 220° FIsheye MIPI Camera Module for Raspberry Pi
- 1 x 15cm 15-22pin FFC Cable
- 1 x 15cm 22-22pin FFC Cable
Notes
- This module supports customized resolution, frame rate, and ROI, etc.
- This module supports a minimum exposure time of 100µs under the current UVC protocol. For even lower exposure times, please contact Arducam for customization.
Documentation
Video
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
