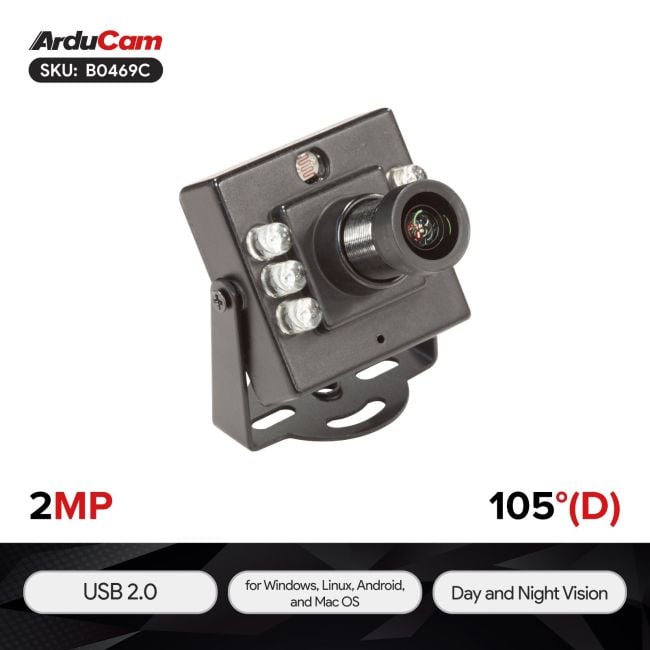

[Discontinued] Arducam 1080P Day and Night Vision USB Camera with Metal Case
SKU
B0469C
Discontinued, check alternative item B0490.
- Based?on?1/2.7″?OV2710?FHD?CMOS
- Automatic?switching?of?day/night?vision
- 6?pcs?940nm?IR?LEDs?for?night?vision?up?to?3?meters
- Max?30fps@1080p?for?fluid?video?capture
- 105°DFoV?HD?lens?for?crisp?details
was
$45.99
Special Price
$35.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
This camera belongs to Arducam's USB 2.0 camera series, specifically designed for night vision applications. Featuring a 940@650nm dual-pass filter and a photosensitive resistor, it intelligently adjusts to lighting conditions. In low light, the IR LED activates, delivering black-and-white night vision with a 3-meter range. In daylight, it captures color images using visible light and around 650nm.
The camera comes with a high-definition lens and a dual-pass filter, providing a wide 105° field of view for comprehensive monitoring.
The Arducam USB 2.0 camera is effortlessly plug-and-play. Simply connect it to any USB 2.0 port, and you're good to go. There's no need for complex installations or driver downloads. Whether you're a tech novice or a seasoned pro, our USB 2.0 camera ensures that capturing moments and participating in video conferences is a seamless and hassle-free experience.
Applications
- Machine Vision
- Automated Optical Inspection
- 3D Scanning and Metrology
- Video Conferencing
- Home Surveillance
Features
- 1/2.7" OV2710 CMOS Sensor for high-quality day and night vision.
- Intelligent IR Mode ensures automatic color-to-B&W transition in dark light.
- Powerful Night Vision with 6x 940nm IR LEDs for clear 3m night monitoring.
- Wide-angle clarity with a 105° Diagonal Field of View thanks to the HD lens.
- Smooth 30fps@1080p Video capture, making it ideal for reliable home surveillance.
Specifications
| Image Sensor | |
| Sensor | OV2710 |
|---|---|
| Still Resolution | 2 Megapixels |
| Color Filter Type | Color/Mono |
| Shutter Type | Rolling |
| Optical Size | 1/2.7" |
| Output Format | MJPG/YUY2 |
| Pixel Size | 3 µm x 3 µm |
| Sensor Active Area | 1920(H)×1080(V) |
| Max Frame Rate | MJPG: 30fps@320*240, 352*288, 640*480, 800*600, 1024*768, 1280*720, 1280*960, 1280*1024, 1920*1080 YUY2: 30fps@320*240,352*288; 15fps@640*480; 20fps@800*600; 10fps@1024*768, 1280*720; 5fps@1280*960,1280*1024,1920*1080 |
| Lens | |
| Focus Type | Manual Focus |
| FOV | 105°(D)×90°(H)×74°(V) |
| Lens Mount | M12 Mount |
| F.NO | F1.0 |
| E.F.L | 3.9mm |
| IR Sensitivity | Dual Bandpass Filter Visible + 940nm NIR |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.6W |
| Camera Board Size | 38×38mm, 28×28mm with case |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Contrast, Gain, Exposure, |
Package Including
- 1 x OV2710 USB Camera with Case
- 1 x 1m USB 2.0 Cable
- 1 x Quick Guide Start
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
