IMX179 8MP Autofocus USB Camera Module, 1/3.2" 3264(H)×2448(V)@30fps with Sigle Microphone for Linux, Windows, and Mac OS
SKU
UB0240
- Frame Rate: 4K(3264×2448)@30fps, full HD USB camera with autofocus lens; Capture most exciting details at every 30/15fps, FoV: 65°(H)
- MJPEG/YUYV: Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for industrial.
- UVC Compliant: OTG supported just plug the USB cable into your PC’s USB port, and running the software can capture the high-level video and continuous recording, no driver needed.
- Support OS: USB cameras are widely available for Windows, Android, Linux, and Mac OS with UVC protocol.
- Mini Sized: Lightweight and compact size is perfect for embedded applications, and ideal for Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.
$45.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
This camera is based on 8MP IMX179 USB Camera Module. The max resolution&frame rate is 3264(H)×2448(V)@30fps. Besides, we have equiped the camera with Auto Focus Lens. Arducam has developed and designed this camera based on SONY IMX179 sensor. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the sensor, enabling the camera to realize your various projects. The camera is equiped with a 65°(H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android and MAC and no additional drivers required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.
Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System
Specifications
| Image Sensor | Sony IMX179 |
|---|---|
| Resolution | 8MP |
| Color Filter | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/3.2" |
| Output Format | YUYV/MJPG |
| Pixel Size | 1.4μm*1.4μm |
| Active Pixels | 3264(H)×2448(V) |
| Frame Rate | MJPG: 30fps@Full Resolution YUY2: 1fps@3264 x 2448; 2fps@2592 x 1944/2048 x 1536; 5fps@1920 x 1080/1600 x 1200; 7.5fps@1280 x 960; 10fps@1280 x 720; 15fps@1024 x768; 25fps@800 x 600; 30fps@640 x 480 |
| Focus Type | Autofocus |
| FOV | 65°(H) |
| Lens Mount | M6.5*P0.25mm |
| F.NO | 2.0±5% |
| Focal Length | 3.543mm±5% |
| Distortion | <1% |
| Interface | USB 2.0 device |
| Connector | SM05B-SRSS-TB |
| UVC Compliant | no additional drivers required |
| Operating Voltage | DC 5V +/- 5% |
| Work Current | Max 300mA |
| Operating Temp. | -4℉-158℉(-20°C to 70°C) |

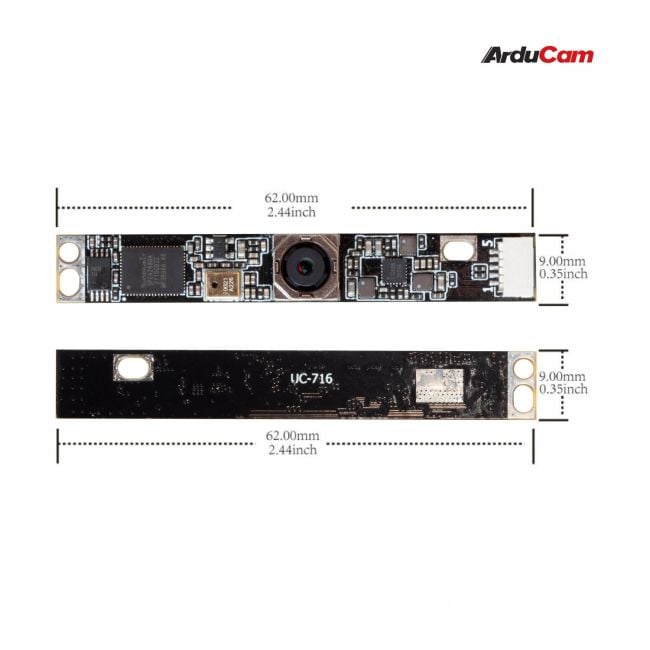

| Camera Board Size | 62mm x 9mm x 6mm |
| Audio | Single Microphone |
| Supported OS | Windows, Linux, Android and MAC |
| Sample Application | Amcap-Windows Camera application for Video and Still Capture |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Gain, Exposure |
Package Including
- 1 x Arducam IMX179 8MP Camera Module
- 1 x USB Cable (1m)
Note
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
- No platform board (Raspberry Pi/Nvidia Jetson Nano/NX board) is included in the package
Documentations
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
