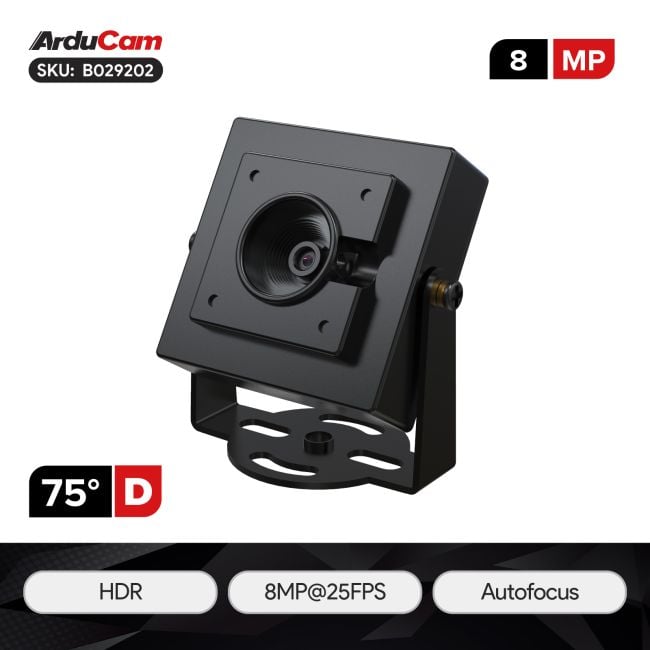

8MP HDR Autofocus USB Camera Module with Metal Housing, 1080P Mini UVC USB2.0 Webcam, A219
SKU
B029202
- [Plug-and-Play] No additional driver is needed.
- [HDR] Features the High Dynamic Range function.
- [Autofocus] Armed with a 72° (DFOV) Autofocus Lens.
- [High Resolution] 8MP HD, Max resolution: 3264*2448.
- [Metal Case] Metal case, ensuring both heat-sinking and product completeness.
$34.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
An compact 8MP USB camera module with HDR and autofocus, housed in a durable metal case for enhanced heat dissipation and protection. It delivers high-resolution imaging up to 3264×2448 and 1080P video over USB 2.0, with a 72° DFOV autofocus lens for wide-angle clarity. With plug-and-play support on Windows, Linux, Android, and macOS, the A219 is a reliable choice for embedded vision applications requiring sharp detail and strong dynamic range.
Features
- [Plug-and-Play]
This camera module offers effortless plug-and-play connectivity across Windows, Linux, Android, and macOS platforms. No extra drivers or software installations are required—just connect via USB and begin capturing high-quality images immediately. - [HDR]
Equipped with High Dynamic Range (HDR) technology, the camera delivers balanced images with enhanced detail in both bright and dark areas. This ensures clear and vivid visuals even in challenging lighting conditions. - [High Resolution]
This 8MP HD camera module delivers crisp and detailed images with a maximum resolution of 3264 × 2448 pixels, ensuring high-quality visuals suitable for a variety of professional and embedded applications. - [Autofocus]
Featuring a 72° diagonal field of view (DFOV) autofocus lens, the camera automatically adjusts focus to maintain sharp and clear images across various distances, making it suitable for dynamic scenes and versatile applications. - [Metal Case]
Housed in a robust metal enclosure, the camera benefits from effective heat dissipation and enhanced durability. The metal case ensures reliable performance and product integrity during extended use or in demanding environments.
Specifications
| General Sepcs | B029202(Upgraded) | B0292-1(Standard) |
|---|---|---|
| Image Sensor | ||
| Still Resolution | 8MP | 8MP |
| Color Filter Type | Color | Color |
| Shutter Type | Rolling | Rolling |
| Optical Size | 1/4" | 1/4" |
| Output Format | MJPG/YUY2 | MJPG/YUY2 |
| Pixel Size | 1.12µm x 1.12µm | 1.12um x 1.12um |
| Sensor Active Area | 3280(H)×2464(V) | 3280(H)×2464(V) |
| Frame Rate(MJPG) | 3264x2448@25fps, 2592x1944@30fps; 1920x1080@30fps, 1280x720@30fps;640x480@30fps; |
3264x2448@15fps, 2592x1944@15fps; 1920x1080@30fps, 1280x720@30fps;640x480@30fps; |
| Frame Rate(AI Resolution(YUV)) | 640x480@30fps, 320x240@30fps; 320x320@30fps, 128x128@30fps; 96x96@30fps; |
640x480@10fps, 320x240@10fps; |
| Lens | ||
| IR Sensitivity | Integral 650nm IR Filter, visible light only | Integral 650nm IR Filter, visible light only |
| Focus Type | Autofocus | Autofocus |
| FOV | 75°(D)×61°(H)×50°(V) | 72°(D)×60°(H)×47°(V) |
| Lens Mount | Stock Lens | Stock Lens |
| F.NO | F1.8 | F2.0 |
| E.F.L | 3.95mm | 2.96mm |
| Default Focus Range | 10cm-∞ | 10cm-∞ |
| USB Interface | ||
| Interface | USB 2.0 Device | USB 2.0 Device |
| Connector | B4B-ZR JST | B4B-ZR JST |
| UVC Compliant | No additional drivers required | No additional drivers required |
| Electrical and Mechanical | ||
| Operating Voltage | 5V | 5V |
| Operating Temp. | 32°F-158°F (0°C to 70°C) | 32°F-158°F (0°C to 70°C) |
| Power Consumption | 1.75W | 1W |
| Camera Board Size | 32mm x 32mm x 1.6mm | 38mm x 38mm |
| Functionality and Compatibility | ||
| HDR Support | YES | NO |
| Enclosure | with Metal Enclosure | without Enclosure |
| Supported OS | Windows, Linux, MacOS | Windows, Linux, MacOS |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Lowlight Compensation, Gain, Focus (Auto/Manual), Exposure (Manual/Auto) | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto) |
Documentation
Package Including
- 1pcs Arducam IMX219 USB2.0 Camera Module
- 1pcs 3.3ft (1M) USB cable
