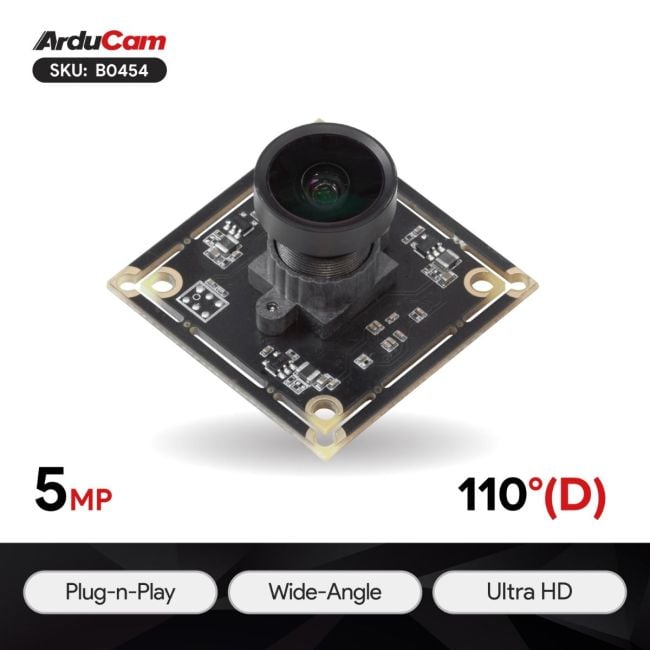

5MP OV5648 USB Camera Module with Wide Angle M12 Lens and Single Microphone for Windows, Linux, Android, and Mac OS
SKU
B0454-1
- Ultra HD: Based on 5MP OV5648 color image sensor.
- Plug-n-Play: UVC-compliant, connect and play. No additional driver is needed.
- Wide-Angle: Armed with a 95-degree horizontal view wide-angle M12 Lens
- Manual Focus: The removeable M12 Lens allows you to manually adjust the focus.
- Onboard ISP: Integrated hardware ISP. Support auto exposure, auto white balance, etc.
$39.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
This camera is based on 5MP OV5648 USB Camera Module. The max resolution&frame rate is 2592(H)x1944(V)@30fps. Besides, we have equiped the camera with Manual Focus M12 Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 110°(D)x95°(H)x76°(V) M12 lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.
Applications
- Home video surveillance system
- Live streaming
- Videoconference
- Monitoring 3D printer
- Dashcam
Features
- Ultra HD Resolution: This camera adopts the 5MP OV5648 Color COMS sensor for sharp images and accurate color reproduction.
- Wide Angle: Assembled with a 95-degree horizontal view angle M12 lens with IR-cut filter, which provides a much wider Field of View compared to other lenses.
- Frame Rates: MJPG 15fps@2592*1944/2048*1536/1600*1200; 30fps@1920*1080/1280*960/1280*720/1024*768/800*600/640*360/640*480; YUY2 2fps@2592*1944/2048*1536; 5fps@1920*1080; 7.5fps@1600*1200/1280*960; 10fps@1280*720/1024*768; 20fps@800*600; 30fps@640*360/640*480
- Plug-n-Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- Wide Applications: Highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision applications.
Specifications
| Sensor | OV5648 |
|---|---|
| Resolution | 5MP |
| Color Filter Type | Color |
| Shutter Type | Rolling shutter |
| Optical Size | 1/4" |
| Output Format | MJPG/YUY2 |
| Pixel Size | 1.4um x 1.4um |
| Sensor Active Area | 2592(H)x1944(V) |
| Frame Rate | MJPG 15fps@2592*1944/2048*1536/1600*1200; 30fps@1920*1080/1280*960/1280*720/1024*768/800*600/640*360/640*480; YUY2 2fps@2592*1944/2048*1536; 5fps@1920*1080; 7.5fps@1600*1200/1280*960; 10fps@1280*720/1024*768; 20fps@800*600; 30fps@640*360/640*480 |
| Focus Type | Manual Focus |
| FOV | 110°(D)x95°(H)x76°(V) |
| Lens Mount | M12 |
| F.NO | 2.5±10% |
| E.F.L | 2.1 |
| IR Sensitivity | Integral IR-cut filter, visible light only |
| TV Distortion | <20% |
| Interface | USB 2.0 device |
| Connector | B4B-ZR |
| UVC Compliant | No additional drivers required |
| Operating Voltage | DC 5V +/- 5% |
| Working Current | Max 300mA |
| Operating Temp. | -4°F-158°F(-20°C to 70°C) |
| Camera Board Size | 38mm x 38mm |
| Audio | Single Microphone |
| Supported OS | Windows, Linux, Android, and Mac OS |
| Sample Application | AMCap-Windows Camera application for Video and Still Capture |
| UVC Controls | Brightness, Contrast, Saturation, Sharpness, White Balance, Gain |
Package Including
- 1 x Arducam 5MP Wide Angle USB Camera Module
- 1 x USB Cable (1m)
- 1 x Quick start guide
Note
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
- No platform board (Raspberry Pi/Nvidia Jetson Nano/NX board) is included in the package
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
