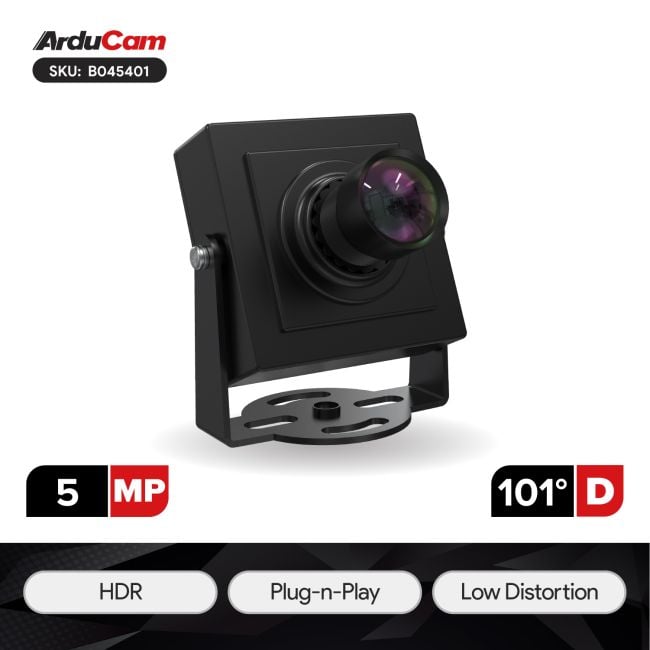

5MP HDR USB Camera Module with Wide Angle M12 Lens for Windows, Linux, Android, and Mac OS , A5648S
SKU
B045401
- [Plug-and-Play] UVC-compliant, No additional driver is needed.
- [HDR] Features the High Dynamic Range function.
- [AI-Ready YUV Output] Supports YUV resolutions optimized for AI
- [Low Distortion Wide-Angle] Armed with a low distortion wide-angle M12 Lens
- Onboard ISP: Integrated hardware ISP. Support auto exposure, auto white balance, etc.
$38.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The A5648S 5MP HDR USB Camera Module is a plug-and-play UVC solution compatible with Windows, Linux, Android, and macOS. It features High Dynamic Range (HDR) for clear imaging in challenging lighting and supports AI-friendly YUV resolutions for computer vision workflows. Equipped with a low-distortion 88° wide-angle M12 lens, it delivers broad, accurate scene coverage. The onboard hardware ISP provides auto exposure, auto white balance, and other image optimizations directly on the module for consistent, high-quality output.
Applications
- Home video surveillance system
- Live streaming
- Videoconference
- Monitoring 3D printer
- Dashcam
Features
- Plug-and-Play UVC Compatibility The A5648S is fully UVC-compliant, enabling seamless plug-and-play operation on Windows, Linux, Android, and macOS without any driver installation. It integrates easily into existing systems for rapid deployment.
- High Dynamic Range (HDR) Equipped with HDR capability, the camera captures clear and detailed images in high-contrast environments. Bright and dark areas are preserved simultaneously, making it suitable for indoor, outdoor, or mixed-lighting applications.
- AI-Optimized YUV Resolutions Designed for AI vision workloads, the camera supports a range of lightweight YUV resolutions ideal for edge inference, gesture detection, object recognition, and embedded CV tasks. Supported AI resolutions include: from 96 × 96 @ 30fps to 640 × 480 @ 30fps
- Low-Distortion 88° Wide-Angle M12 Lens The integrated M12 lens offers an 88° wide horizontal field of view with low optical distortion, ensuring accurate scene capture for robotics, smart terminals, people detection, and other spatial-awareness applications.
- Onboard Hardware ISP Featuring a built-in image signal processor, the A5648S delivers consistent, high-quality output with hardware-level enhancements.
Specifications
| General Sepcs | B045401 | B0454-1 |
|---|---|---|
| Image Sensor | ||
| Still Resolution | 5MP | 5MP |
| Color Filter Type | Color | Color |
| Shutter Type | Rolling | Rolling |
| Optical Size | 1/2.8'' | 1/4" |
| Output Format | MJPG/YUY2 | MJPG/YUY2 |
| Pixel Size | 2 µm x 2 µm | 1.4 µm x 1.4 µm |
| Sensor Active Area | 2592(H)x1944(V) | 2592(H)x1944(V) |
| Frame Rate | MJPG: 2592*1944@30fps; 2048x1536@30fps; 1920x1080@30fps; 1600x1200@30fps; 1280x960@30fps; 1280x720@30fps; 1024x768@30fps; 800x600@30fps; 640x360@30fps; 640x480@30fps; |
MJPG: 2592x1944@15fps, 2048x1536@15fps; 1600x1200@15fps, 1920x1080@30fps; 1280x960@30fps, 1280x720@30fps; 1024x768@30fps, 800x600@30fps; 640x360@30fps, 640x480@30fps; YUY2: 2592x1944@2fps, 2048x1536@2fps; 1920x1080@5fps, [email protected]; [email protected], 1280x720@10fps; 1024x768@10fps, 800x600@20fps; |
| Frame Rate(AI Resolution(YUV)) | 640x480@30fps, 320x240@30fps; 320x320@30fps, 128x128@30fps; 96x96@30fps; |
/ |
| Lens | ||
| IR Sensitivity | Integral 650nm IR Filter, visible light only | Integral 650nm IR Filter, visible light only |
| Focus Type | Fixed Focus | Fixed Focus |
| FOV | 101°(D)×88°(H)×60°(V) | 110°(D)x95°(H)x76°(V) |
| Lens Mount | M12-S | M12-S |
| F.NO | F2.8±5% | F2.5±10% |
| E.F.L | 2.7mm | 2.1mm |
| Default Focus Range | 300cm-∞ | 300cm-∞ |
| Distortion | <-1.0% | <20% |
| USB Interface | ||
| Interface | USB 2.0 Device | USB 2.0 Device |
| Connector | B4B-ZR JST | B4B-ZR JST |
| UVC Compliant | No additional drivers required | No additional drivers required |
| Electrical and Mechanical | ||
| Operating Voltage | DC 5V +/- 5% | DC 5V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) | 32°F-158°F (0°C to 70°C) |
| Power Consumption | Typical: 1.043w | Typical: 0.818W |
| Camera Board Size | 32mm x 32mm x 1.6mm | 38mm x 38mm x 1.6mm |
| Functionality and Compatibility | ||
| HDR Support | Yes | NO |
| Enclosure | with Metal Enclosure | without Enclosure |
| Supported OS | Windows, Linux, Android | Windows, Linux, Android |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Lowlight Compensation, Focus (Auto/Manual), Exposure (Manual/Auto) | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto) |
Package Including
- 1 x Arducam 5MP Wide Angle USB Camera Module
- 1 x USB Cable (1m)
- 1 x Quick start guide
Note
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
- No platform board (Raspberry Pi/Nvidia Jetson Nano/NX board) is included in the package
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
