OAK-D S2: OV9282×2+IMX378+Intel Movidius Myriad X for Depth AI OAK
SKU
OAK-D S2
$329.00
Overview
Specifications
Wiki
Documents
Video
Customization

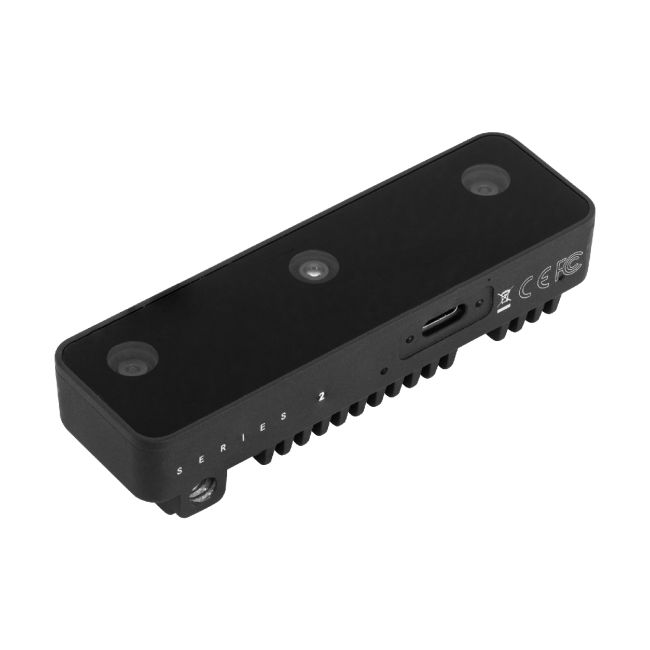

The OAK-D S2 is the series 2 of the OAK-D. The main difference is that OAK-D S2 has a smaller enclosure and is therefore lighter. OAK-D S2 also doesn’t have a barrel jack for supplying power, so it only has a USB-C connector for both power and communication.
Available in two variants:
Both the Fixed-Focus and Auto-Focus variants have fixed-focus grayscale stereo cameras. The Auto-Focus vs. Fixed-Focus variants of OAK-D-Lite differ only in the 12.3 MP color camera. Fixed-Focus has the lens fixed in place mechanically and cannot move, whereas Auto-Focus has an electromagnet that controls the lens position dynamically.
- Auto-Focus can focus on objects dynamically, which is mainly useful for objects within 50cm of the device. Auto-focus cameras can also be manually set to a specific focus position utilizing our API.
- Fixed-Focus is recommended for heavy-vibration applications (e.g., drones, lawnmowers, bikes w/out suspension, etc. (see video)
Both Auto-Focus and Fixed-Focus can clearly see objects beyond 50 cm, working between 50 cm and infinity. Auto-Focus has the advantage that it can focus on objects as close as 10cm (see video).
Need a Wide FOV option? Check it out here: OAK-D W
Features
- 4 TOPS of processing power (1.4 TOPS for AI)
- Run any AI model, even custom architectured/built ones
- Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
- Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
- Stereo depth perception at 120 FPS with filtering
- Object tracking: 2D and 3D tracking
- Dimension: 97x29.5x22.9 mm
- Weight: 91g
Camera Specifications
| Color camera | Stereo pair | |
| Sensor | IMX378 | OV9282 |
| DFOV / HFOV / VFOV | 81° / 69° / 55° | 81° / 72° / 49° |
| Resolution | 12MP (4032x3040) | 1MP (1280x800) |
| Focus | Auto-Focus: 8cm - ∞ | Fixed-Focus: 19.6cm - ∞ |
| Max Framerate | 60 FPS | 120 FPS |
| F-number | 2.0 | 2.2 |
| Lens size | 1/2.3 inch | 1/4 inch |
Documentation:
Includes:
- OAK-D S2 camera
- USB A-C cable
Reference Numbers
PN: OAK-D S2 Auto-Focus
MN: A00498
PN: OAK-D S2 Fixed-Focus
MN: A00566
