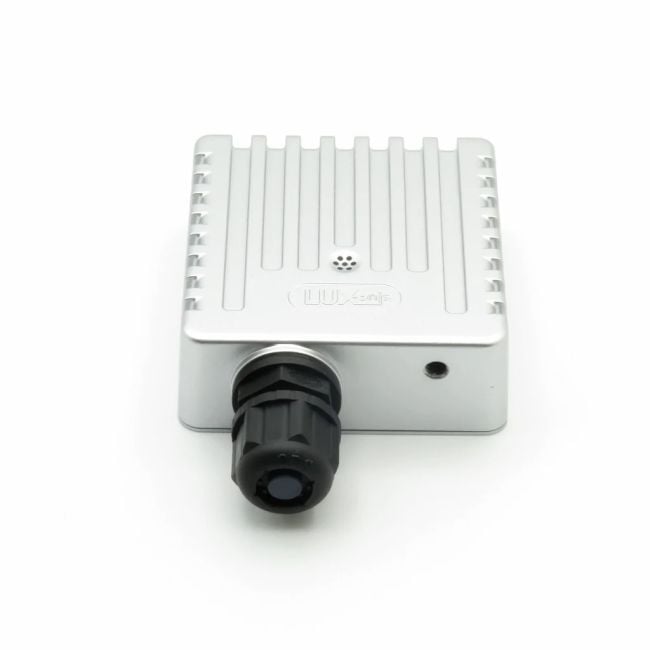

OAK-1-PoE: IMX378+Intel Movidius Myriad X for Depth AI OAK
SKU
OAK-1-PoE
$379.00
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
- 802.3af PoE Power
- 1gbps Ethernet
- IP67 Sealed
- 16GB Internal Storage (eMMC)
- 4 TOPS of processing power (1.4 TOPS for AI)
- Run any AI model, even custom architectured/built ones
- Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
- Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
- Dimension: 82x114x32 mm
- Weight: 294g
Camera Specifications
| Color camera | |
| Sensor | IMX378 |
| DFOV / HFOV / VFOV | 81° / 69° / 55° |
| Resolution | 12MP (4032x3040) |
| Focus | Auto-Focus: 8cm - ∞ |
| Max Framerate | 60 FPS |
| F-number | 2.0 |
| Lens size | 1/2.3 inch |
POE Switch and/or POE Injector NOT Included. Need a POE Switch? See here.
We do not include POE Injectors as we've found in most cases POE switches are used, so the POE injectors are thrown away. If you would like a POE Injector with your order, we will send one free of charge - send us an email at [email protected] with your shipping information.
Documentation and Resources:
Includes
- OAK-1-PoE camera
Reference Numbers:
PN: OAK-1-PoE
MN: A00124
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
