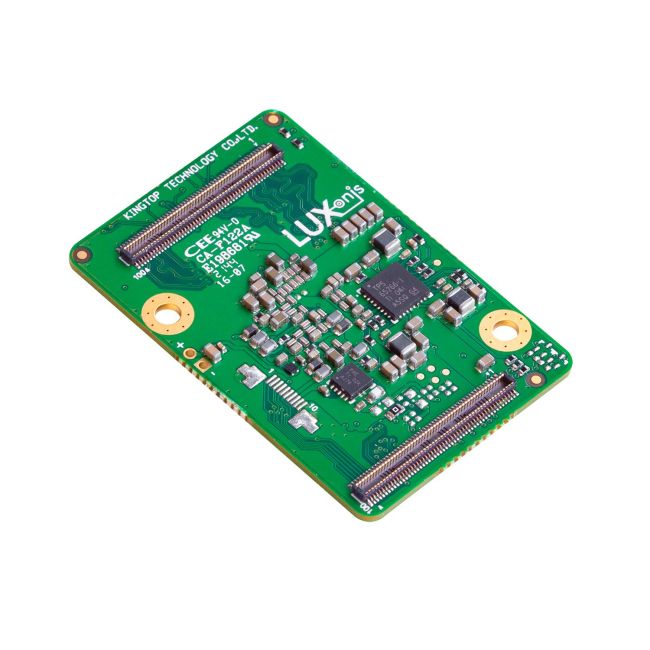

OAK-SoM Pro (sets)

Overview

OAK-SoM Pro can be used to integrate the power of DepthAI into your own products, leveraging our open source software and hardware (see Github).

OAK System on Module (SoM) allows integration into top-level systems with a need for a low-power, high-performance, real-time AI and depth perception.

Core digital electronics in the SoM include:

• Movidius Myriad X VPU
• 64 MB QSPI NOR flash
• 32 kb I2C EEPROM

Features

• 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
• Run any AI model, even custom architectured/built ones (models need to be converted)
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
• Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
• Dimensions: 30x45x4 mm
• Weight: 5g

Specifications

• Interfaces with the system through two 10-gbps-rated 100-pin connectors (DF40C-100DP-0.4V(51))
• Connectors: 2x 100-pin mezzanine connector with the same pinout as OAK-Som-Pro
• MIPI lines: 2x 4-lane and 2x 2-lane MIPI RX lines
• RAM: 1x DDR RAM due to size/shape constraints
• Boot Modes Supported: NOR, eMMC, USB, Ethernet (EEPROM)
• Supporting SD-card
• USB 3.1 Gen 2

Package Including

• OAK-SoM-Pro (5pcs, box)
• System on Module - 5 pcs
• Heatsinks, screws, TIM

Documentation

• Product Documentation
• OAK Design Guide
