Overview

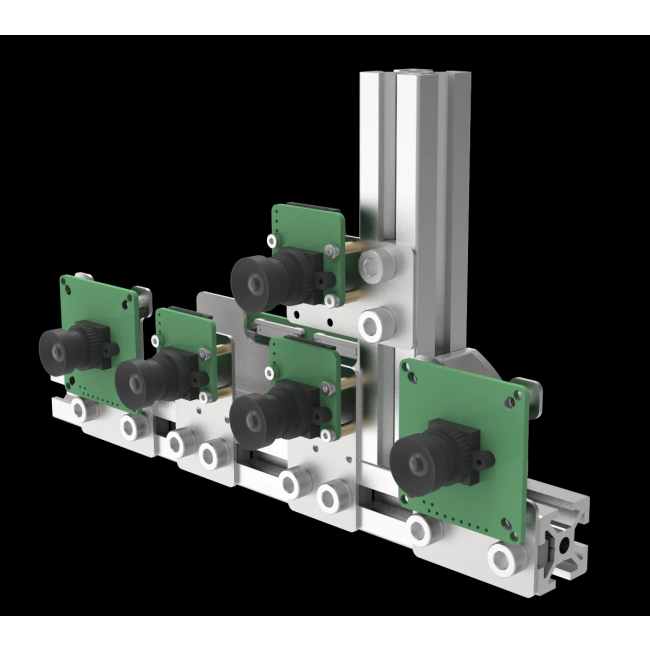

OAK-FFC Kit is a set of extrusions and holders needed to build the mechanical scaffolding. You can now easily design a custom OAK module camera with chosen cameras and baselines (note: this version supports only OAK-FFC-4P base module).
Material
The particular parts are made of:
Package Including
- 1x hex key 1.5
- 1x hex key 2
- 1x hex key 4
- 2x ALU extrusion (long): 2cm x 2cm x 20cm
- 2x ALU extrusion (short): 2cm x 2cm x 10cm
- 6x FFC small board camera holder (horizontal baseline)
- 2x FFC small board camera holder (vertical baseline)
- 6x FFC AR0234 holder
- 2x OAK FFC holder
- 1x quick snap holder
- 20x M5 screws (hex key 4)
- 20x sliding extrusion M5 nut
- 28x M2 screws (hex key 1.5)
- 28x M2.5 screws (hex key 2)
- 2x Reversal Bracket
Documentation
Official Technical Support
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
