| Sensor | IMX378 |
| Optical Size | Type 1/2.3'' (Diagonal 7.857 mm) |
| Pixel Size | 1.55μm×1.55μm |
| Shutter Type | Rolling Shutter |
| Color Filter Array | Bayer RGB |
| Max Sensor Resolution | 4056 x 3040 |
| Resolution and Frame Rate | 4056x3040@30fps, 3840x2160@30fps, 1920x1080@60fps |
| Supported Platform | OAK D series (OAK-D, OAK-D S2, OAK-D Pro, OAK-D-PoE, OAK-D S2 PoE, etc.) and OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P) |
| Focus Type | Autofocus |
| Focus Distance | 10cm~INF |
| Lens | f/1.8, EFL: 4.81mm, FoV: 78° (D) |
| IR Sensitivity | Built-in 650nm IR-cut filter, visible light only |
| Module Dimensions | 10.8mm × 15.82mm |

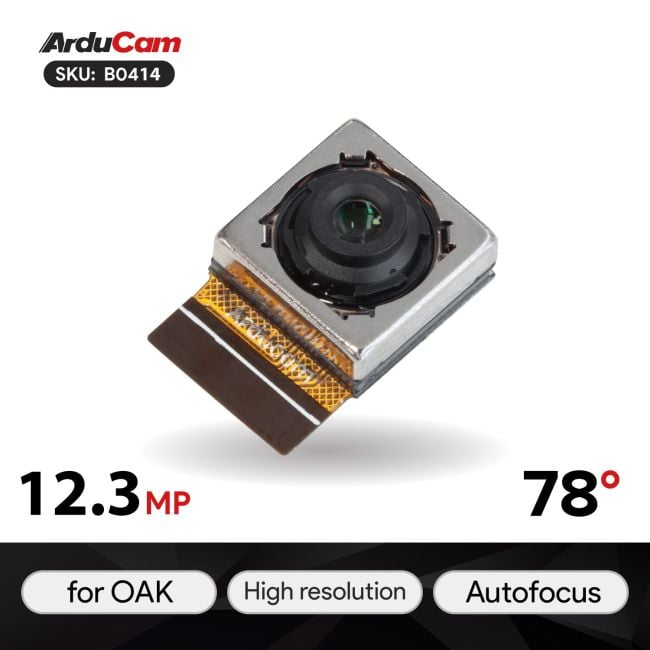

12MP IMX378 Autofocus Camera Module for DepthAI OAK
SKU
B0414
- High Resolution: 12MP
- High Frame Rate: up to 60fps at Full HD
- Autofocus: focus as close as 10cm
- Easy to use: compatible with OAK FFC boards for evaluation
- Due to limited stock, this product is currently available only upon request. Please contact Arducam sales team for ordering details and lead time.
$29.99
Overview
Specifications
Wiki
Documents
Video
Customization
Product Description
Sony's IMX378 is a 12MP (4056x3040) rolling shutter color image sensor. Arducam IMX378 camera module can be used in almost all OAK products (OAK-D, OAK-D S2, OAK-D Pro, OAK-D-PoE, OAK-D S2 PoE, etc.) as the color camera.
It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.
Specification
Documentations
Packing List
- 1 x IMX378 Autofocus Camera Module for DepthAI OAK
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
