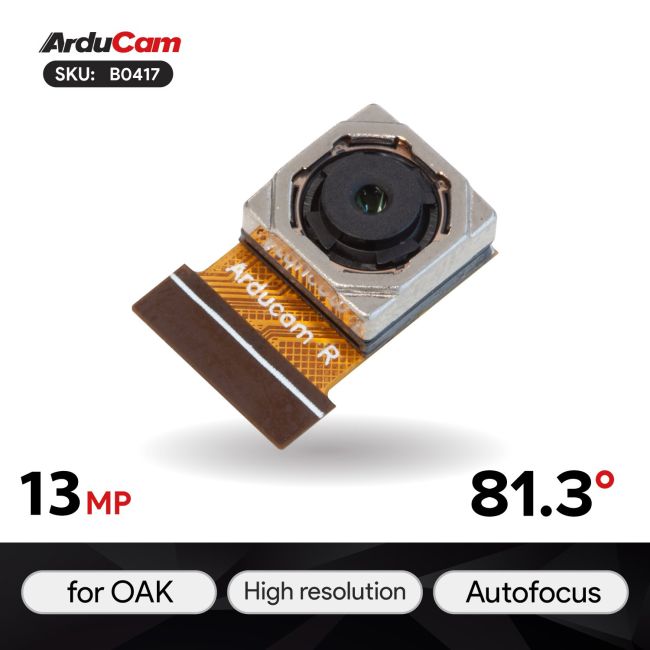

IMX214 13MP Camera Module for DepthAI OAK
SKU
B0417
- High Resolution: 13MP
- High Frame Rate: up to 35fps at Full HD
- Easy to use: compatible with OAK FFC boards for evaluation
$19.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
This Arducam IMX214 13MP high-resolution camera module is designed and released as the color camera in OAK Lite variants; OAK-D-Lite and OAK-1 Lite. It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cableSpecifications
| Sensor | IMX214 |
| Optical Size | Type 1/3.06'' |
| Pixel Size | 1.12μm×1.12μm |
| Shutter Type | Rolling Shutter |
| Color Filter Array | RGB Color |
| Max Sensor Resolution | 4208 x 3120 |
| Resolution & Frame Rate | 4208x3120@30fps, 4056x3040@30fps, 3840x2160@30fps, 1920x1080@35fps |
| Supported Platform | OAK-D-Lite, OAK-1 Lite, OAK-FFC-3P, OAK-FFC-4P |
| Focus Type | Autofocus |
| Focus Distance | 50cm~INF |
| Lens | f/2.2, EFL: 3.37mm, FoV: 81.3° (D) |
| IR Sensitivity | Build-in IR filter, sensitive to visible light |
| Module Dimensions | 8.5mm × 14.67mm |
Documentation
Packing Including
- 1 x IMX214 Camera Module for DepthAI OAK
