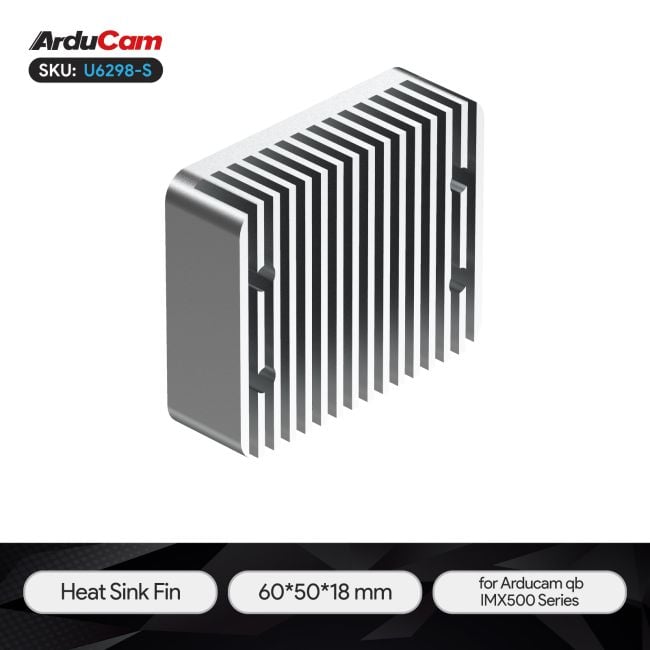

Heatsink Fin for Arducam qb IMX500 AI Camera All-in-one Kit
SKU
U6298
- [for Arducam qb] Specially designed for Arducam qb IMX500 AI Camera Kit series.
- [Variants] Available silver and balck version options.
- [High-Efficiency Dissipation] Average operating temperature decreased by 15℃.
- [More Resources] Refer to Arducam qb.R All-in-one Kit Archive.
$7.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Designed specifically for the Arducam qb IMX500 AI Camera Kit Series, this heatsink measures 60x50x18mm and comes in two color options: Silver and Black. Extensive benchmarking confirms that under identical ambient temperatures and CPU loads, this thermal solution significantly lowers operating temperatures for both the CPU and the IMX500 sensor. Tests show a maximum temperature reduction of up to 20°C, with an average decrease of 15°C. Furthermore, during continuous stress testing exceeding 20 hours, temperatures remained stable at approximately 60°C.
Specification
| SKU | U6298-S | U6298-B |
|---|---|---|
| Dimension | 60x50x18 mm | 60x50x18 mm |
| Color | Silver | Black |
Temperature Comparation
The table below provides an overview of the overall operating temperatures of the Arducam qb with and without a heatsink under the same test conditions.
| Status | without Heatsink | with Heatsink |
|---|---|---|
| Testing GUI |  |
 |
| Temperature Curve |  |
 |
Package Including
- 1 x 60*50*18mm Heatsink Fin for Arducam qb IMX500 AI Camera Series
- 4 x Screws
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
