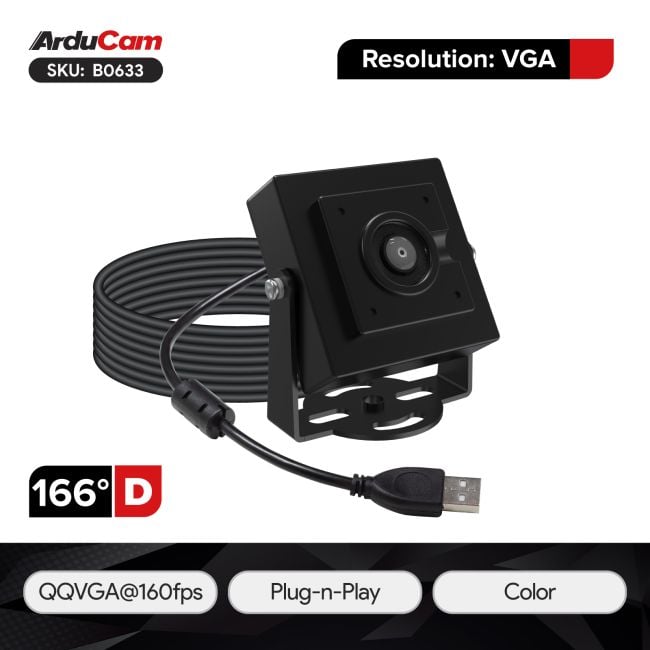

Global Shutter USB2 UVC Camera, Ultra High FPS, VGA Color, Wide Angle, Arducam ezBOX GS
SKU
B0633
- [Global Shutter Color] VGA color sensor with accurate motion capture
- [Ultra High FPS] Up to 160 FPS at QQVGA resolution
- [Wide Angle Optics] Large field of view for wide-area imaging
- [Onboard ISP] Integrated ISP for real-time image processing
- [Plug & Play UVC] USB2 UVC standard, driver-free operation
- [Industrial Control] Customization options for External Trigger, ROI, Fstrobe, etc., available.
$29.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam ezBOX GS B0633 is a color global shutter USB camera built for applications that require both high-speed performance and accurate color imaging. Capable of reaching up to 160 FPS at QQVGA resolution, it captures rapid events with minimal motion distortion, while the wide-angle optics provide broad scene coverage. Featuring an onboard ISP, UVC plug-and-play operation, and a durable metal housing, B0633 is well-suited for robotics, automation, and visual inspection systems.
Applications
- High-Speed Motion Analysis
- Machine Vision & Industrial Inspection
- Robotics & Automation
- Scientific & Laboratory Imaging
- Trigger-Based Image Acquisition Systems
- Embedded Vision & System Prototyping
Features
- [Global Shutter Color] Integrates a VGA color global shutter sensor, delivering accurate color reproduction while eliminating motion distortion in high-speed scenes.
- [Ultra High FPS] Capable of capturing images at up to 160 FPS at QQVGA resolution, ideal for fast event recording, automation, and robotic vision applications.
- [Wide Angle Optics] The wide-angle lens enables broader scene coverage, reducing blind spots and minimizing the need for multiple cameras.
- [Onboard ISP] Built-in ISP performs real-time color processing and image optimization, providing stable and consistent output without relying on host-side processing.
- [Plug & Play UVC] USB2 UVC compliance ensures seamless compatibility with mainstream operating systems and vision software, with no driver installation required.
- [Industrial Control] Housed in a durable metal enclosure, while customization options such as External Trigger, ROI, and Fstrobe are available upon request.
Specifications
| Image Sensor | |
| Product Series | ezBOX-VGA GS |
| Max Still Resolution | VGA |
| Color Filter Type | Color |
| Shutter Type | Global Shutter |
| Optical Size | 1/7.5″ |
| Output Format | MJPG/YUV |
| Pixel Size | 3 µm x 3 µm |
| Sensor Active Area | 640(H) x 480(V) |
| Frame Rate(MJPG) | 640x480@120fps, 320x240@160fps; 160x120@160fps |
| Frame Rate(YUV) | 640x480@60fps,320x240@100fps; 160x120@100fps |
| Lens | |
| IR Sensitivity | Integral 650nm IR Filter |
| Focus Type | Fixed Focus |
| FOV | 166°(D)x130°(H)x100°(H) |
| USB Features | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5V |
| Power Consumption | 0.8W |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Camera Board Size | 32mmX32mmX1.6mm |
| Functionality and Compatibility | |
| External Trigger Function | Support Customization |
| Fstrobe | Support Customization |
| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Sharpness, PowerLine Freq, Backlight Compensation, Gain, Exposure(Auto/Manual). |
Package Including
- 1 x Arducam ezBOX VGA GS Color WA USB2 UVC Camera Module
- 1 x 1m USB2 to B4B-ZR JST Cable
Notes
- This module supports customized resolution, frame rate, and ROI, etc.
- This module supports a minimum exposure time of 100µs under the current UVC protocol. For even lower exposure times, please contact Arducam for customization.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
