Description
Overview
Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Lens Shading Correction, etc.
This B0333 is a new member of the Arducam Pivariety series, which adopts an IMX462 low light sensor and also supports hardware ISP functions like AEC/AGC, etc. That is to say, with this Pivariety, you can get much more decent image quality compared with the Official cameras under low light conditions.
Applications
- Surveillance cameras
- FA cameras
- Industrial cameras
- Autonomous mobile robots, UGV/UAV, ADAS, etc.
Specifications
| Sensor | SONY STARVIS IMX462 |
| Optical Size | Type 1/2.8” (Diagonal 6.46 mm) |
| Pixel Size | 2.9μm×2.9μm |
| Minimum illumination | 0.01Lux |
| Shutter Type | Rolling Shutter |
| Max Sensor Resolution | 1920 x 1080, 2MP |
| Color Filter Array | Bayer RGB |
| Resolution and Frame Rate | 5-60fps@1080P |
| Supported Platform | Pi 5/4/3/Zero/CM3/CM4 |
| Camera Interface | 2-lane MIPI |
| Output Format | RAW10 |
| ISP Output Format | JPG, YUV420, RAW, DNG; MJPEG, H.264 |
| Focus Type | Manual |
| Lens Type | M16 Lens |
| F.NO | 0.95±5% |
| Focal Length | 4mm±5% |
| FOV(Field of View) | 92°H |
| IR Sensitivity | Integral IR cut filter |

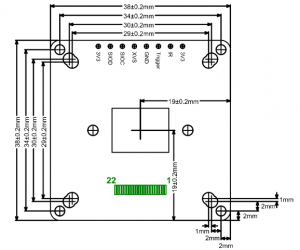

| Dimensions | 38mmx38mm |
| Hold Pitch | Compatible with 34mm×34mm, 28mm×28mm |
Package Including
- 1 x Arducam 2MP IMX462 ISP Camera Module
- 1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
- 1 x 150mm 22pin 0.5mm to 22pin 0.5mm pitch FPC cable
- 1 x acrylic case kit with assembly accessories
Note
- Raspberry Pi board is not included in the package
- Pivariety Driver can only work with libcamera instead of raspistill/raspivid application
- Due to the limitation of the platform and driver, the output format of the camera is changed from the highest RAW12 output to RAW10.
| Note for Supported Raspberry Pi Boards and OS | |||
|---|---|---|---|
| Platform | Bookworm(rpicam) | Bullseye(libcamera) | Buster(raspistill) |
| Raspberry Pi 5 | √ | ||
| Raspberry Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W | √ | √ | |
| Raspberry Pi CM3 / CM3+ / CM4 / CM5 (extra carrier board required) | √ | √ | |
Documentation
 |  |
Video
Additional information

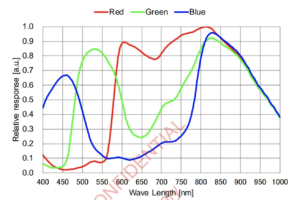

The spectral transmission properties for the Bayer filter on the IMX462 sensor
Additional information
| Weight | 0.25 kg |
|---|---|
| Platform | Raspberry Pi |
| Camera Solution | Pivariety Camera |
| Interface | MIPI CSI |
| Sensor | IMX462 |
| On-board ISP | NO |
| Shutter Type | Rolling Shutter |
| Resolution | 2MP |
| Chroma | Color |
| Features | Low Light |
| Focus Type | Manual Focus |
| Lens Mount | M16 |
