Arducam 5MP OV5647 Miniature Camera Module with M6 Lens and Flexible Cable for Pi Zero，Pi 5 and Pi Compute Module

Arducam 5MP OV5647 Miniature Camera Module with M6 Lens and Flexible Cable for Pi Zero，Pi 5 and Pi Compute Module

Arducam 5MP OV5647 1080P Camera Module with Acrylic Case for Raspberry 5/4/3B+/3 and More

Arducam 5MP OV5647 1080P Camera Module with Acrylic Case for Raspberry 5/4/3B+/3 and More

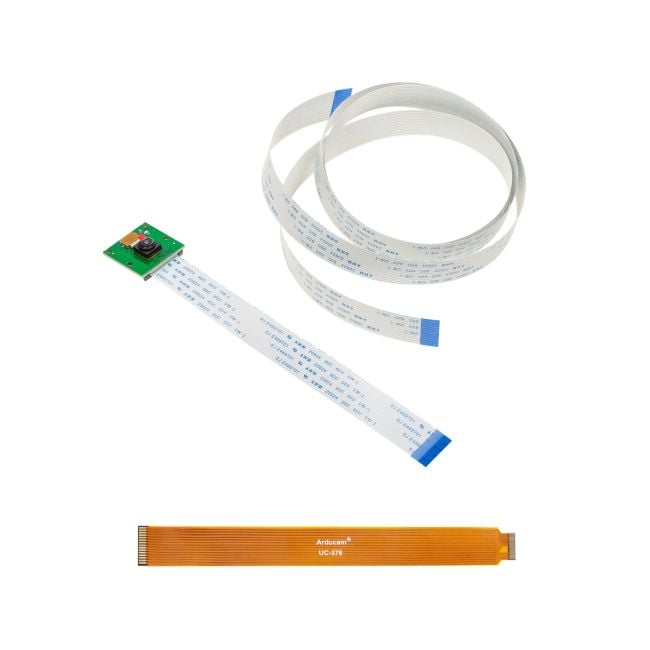

Arducam 5MP OV5647 Camera for Monitoring 3D Printer, with 3.28FT/100CM Long Extension Flex Ribbon Cable for Raspberry Pi

SKU
B0033R



  • 5MP camera module for 3D printer projects with Raspberry Pi
  • Natively compatible with the official Raspberry Pi camera modules and motherboards
  • Used on Raspbian 3D printer monitoring, surveillance camera or other Pi cam projects
  • 100cm/3.28ft extension cable included, long enough for mounting the camera
  • Work on libcamera commands and python scripts as you would expect for a new project or drop-in replacement
was $13.99 Special Price $8.99
Add to Wish List
Overview
Specifications
Wiki
Documents
Video
Customization

Overview

To meet the growing demand for Raspberry Pi compatible camera modules. The Arducam team has now released another fully compatible add-on mini camera module for the Raspberry Pi series boards.

The board itself is small, about 25mm x 24mm, making it ideal for mobile or other applications where size and image quality are important. It connects to the Raspberry Pi via a short ribbon cable. The camera is connected to the BCM2835/BCM2836 processor on the Pi via a CSI bus that runs along the ribbon cable that connects the camera board to the Pi.

The sensor itself has a native resolution of 5 megapixels and has an onboard fixed focal length lens. In terms of still images, the camera is capable of capturing 2592 x 1944 pixel still images and also supports 1080p30fps, 720p60fps and 640x480p60/90fps video.

Applications

  • Raspbian
  • 3D printer monitoring
  • Surveillance camera
  • PC multimedia
  • Other Pi camera projects
  • Digital still cameras,etc.

Specifications

Sensor Omnivision OV5647 sensor
Sensor size 1/4” (OV5647)
Resolution 5MP 2592×1944
Video 1080p 30 fps, 720p 60fps, 480p 90fps
Field of View (FOV) 54°(H), 41°(V)
Focus Type Fixed Focus
Focus Distance 1 m to infinity
Full-frame SLR lens equivalent 35 mm
Dimension 25×24 mm
Peak Current 300mA

Package Including

  • 2 x 15-15 pin flex ribbon cables (15cm/100cm) for Raspberry Pi A&B series
  • 1 x 15-22 pin flex ribbon cable (15cm) for Raspberry Pi Zero
  • 1x OV5647 Camera Module

Note

  • Raspberry Pi board is not included
    • Note on Supported Raspberry Pi Boards and OS
    Platform Trixie(rpicam) Bookworm(rpicam) Bullseye(libcamera) Buster(raspistill)
    Raspberry Pi 5 √ √
    Raspberry Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W √ √ √ √
    Raspberry Pi CM3 / CM3+ / CM4/CM5
    (extra carrier board required)    		 √ √ √ √

Documentation

5MP OV5647 Standard Camera Modules

Posted: January 4, 2021

Introduction 5MP OV5647 cameras, namely the V1 camera series, are used a lot on Raspberry Pi camera applications. Unlike the V2 cameras which are encrypted on the camera board with a chip, the 5MP OV5647 cameras can be easily modified and customized by third-party manufacturers, thus you will see a lot of variations of this […]

0 comments

Video

How to purchase

You can purchase this item from Arducam distributors or Arducam’s Amazon store

Selection Guide

Edit
SKU Product Resolution Color Shutter Camera board Mount IR sensitivity Focus
B0161 0.3MP Monochrome Global Shutter 0.3MP B/W Global shutter 40mm Stock Visible light Fixed Focus
B0162 1MP Monochrome Global Shutter 1MP B/W Global shutter 40mm Stock Visible light Fixed Focus
B0165 1MP Monochrome Global Shutter M12 Mount 1MP B/W Global shutter 40mm M12 Visible light Adjustable
B0031 5MP M12 5MP RGB rolling shutter 36mm M12 Visible light Adjustable
B0032 5MP CS Mount 5MP RGB rolling shutter 36mm CS Visible light Adjustable
B0033 5MP 5MP RGB rolling shutter 24mm Stock Visible light Fixed Focus
B0033+B0087 5MP with Pi Zero Cable 5MP RGB rolling shutter 24mm Stock Visible light Fixed Focus
B003301 5MP NoIR 5MP RGB rolling shutter 24mm Stock IR sensitive Fixed Focus
B0033C 5MP with case 5MP RGB rolling shutter 24mm Stock Visible light Fixed Focus
B0033R 5MP with long Ribbon Cable 5MP RGB rolling shutter 24mm Stock Visible light Fixed Focus
B0035 5MP M12 NOIR 5MP RGB rolling shutter 36mm M12 IR sensitive Adjustable
B003503 5MP Switchable IR-cut with LED 5MP RGB rolling shutter 36mm M12 Switchable IR filter Adjustable
B0036 5MP CS Mount CS NOIR 5MP RGB rolling shutter 36mm CS IR sensitive Adjustable
B0055 5MP M12 Fisheye 5MP RGB rolling shutter 36mm M12 Visible light Adjustable
B0066 5MP Cam 5MP RGB rolling shutter spy cam Stock Visible light Fixed Focus
B006602 5MP NOIR 5MP RGB rolling shutter spy cam Stock IR sensitive Fixed Focus
B006603 5MP Pi zero spy cam 60 5MP RGB rolling shutter spy cam Zero Stock Visible light Fixed Focus
B006604 5MP Pi zero spy cam 120 5MP RGB rolling shutter spy cam Zero Stock Visible light Fixed Focus
B006605 5MP Pi zero spy cam 160 5MP RGB rolling shutter spy cam Zero Stock Visible light Fixed Focus
B0121 5MP AutoFocus 5MP RGB rolling shutter 40mm Stock Visible light Programmable
B0151 5MP Switchable IR-cut 5MP RGB rolling shutter 36mm M12 Switchable IR filter Adjustable
B01675MP 5MP PTZ 5MP RGB rolling shutter 36mm F14 Switchable IR filter Varifocal
B0176 5MP AutoFocus mini 5MP RGB rolling shutter 24mm Stock Visible light Programmable
B0102 8MP CS 8MP RGB rolling shutter 36mm CS Visible light Adjustable
B0103 8MP M12 8MP RGB rolling shutter 36mm M12 Visible light Adjustable
B0122 8MP AutoFocus 8MP RGB rolling shutter 40mm Stock Visible light Programmable
B0152 8MP M12 NOIR 8MP RGB rolling shutter 36mm M12 IR sensitive Adjustable
B0153 8MP CS NoIR 8MP RGB rolling shutter 36mm CS IR sensitive Adjustable
B0154 8MP M12 Switchable IR-cut 8MP RGB rolling shutter 36mm M12 Switchable IR filter Adjustable
B01678MP 8MP PTZ 8MP RGB rolling shutter 36mm F14 Switchable IR filter Varifocal
B0180 8MP IMX219 replacement M12 170 Wide Angle 8MP RGB rolling shutter Sensor Module M12 Visible light Adjustable
B0182 8MP IMX219 replacement Autofocus 8MP RGB rolling shutter Sensor Module Stock Visible light Programmable
B0184 8MP IMX219 replacement M12 Low Distortion 8MP RGB rolling shutter Sensor Module M12 Visible light Adjustable
B0188 8MP IMX219 replacement M12 Low Distortion NoIR 8MP RGB rolling shutter Sensor Module M12 IR sensitive Adjustable
B0190 8MP IMX219 replacement Autofocus NoIR 8MP RGB rolling shutter Sensor Module Stock IR sensitive Programmable
B1094 8MP IMX219 replacement M12 170 Wide Angle NoIR 8MP RGB rolling shutter Sensor Module M12 IR sensitive Adjustable
B0163 13MP MIPI Camera 13MP RGB rolling shutter 40mm Stock Visible light Fixed Focus
B0174 16MP MIPI Camera 16MP RGB rolling shutter 40mm Stock Visible light Fixed Focus
B0164 18MP MIPI Camera 18MP RGB rolling shutter 40mm M12 Visible light Adjustable

Customization

About Arducam's Customization Services:

If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.

What can Arducam customize?

Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
