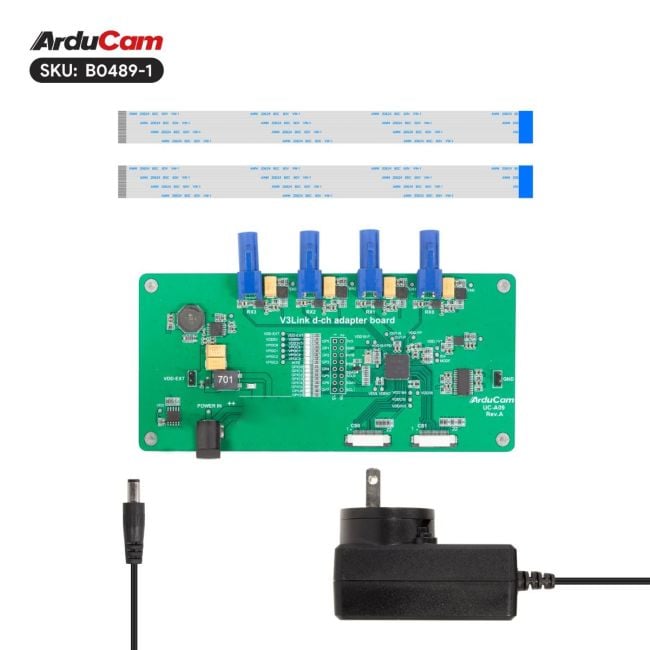

Arducam V3Link Camera Kit for TI Development Boards-1×Rx board with Power Adapter
SKU
B0489-1
- TI SK-AM62A-LP/AM68A/AM69A Ready, a multi-camera solution with high bandwidth.
- IMX219 CMOS-based, up to 10m Range high-speed transmission
- Flexible and switch 4-channel control
- Effortless setup, no additional configuration
$69.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam's V3Link camera kit boasts full HD with IMX219 sensor and V3Link interface—a go-to for high-bandwidth, long-distance vision projects. The shielded coaxial cable ensures reliable power and data transmission over distances of up to 10m, maintaining low latency for optimal performance.
Featuring 4× 8MP camera modules, this kit allows flexible channel switching or independent control. Achieving both multi-camera switchable and remote control, it offers unparalleled flexibility and convenience.
V3Link, a high-bandwidth transmission interface developed by Texas Instruments, leverages FPD-Link's IP for ADAS, security cameras, industrial, and medical imaging. Empowering Arducam's camera kit, ensures efficient data transmission, making it a robust choice for various applications and long-distance connections.
Applications
- ADAS
- Automotive
- Security Cameras
- Industrial Systems
- Medical Imaging
Features
- TI SK-AM62A-LP Compatibility: Tailored for TI SK-AM62A-LP/AM68A/AM69A development board, offering a multi-camera solution with high bandwidth for extended-distance transmission.
- IMX219 CMOS & Long-Range Stability: Utilizes the IMX219 8MP sensor for high-quality imaging. Achieves stable cable connections up to 10 meters with multi-camera.
- Flexible Channel Management: Enables channel switching and independent control, supporting up to four cameras. High-frequency signal transmission facilitates versatile applications like automotive, surveillance, medical, and industrial imaging.
- Cost-Effective 4-Channel System: Allows the creation of a switchable 4-channel vision system, reducing development costs. Ideal for various applications, ensuring a smaller footprint and flexible deployment.
- Plug-and-Play Convenience: Effortless setup with no additional configuration or drivers required. Streamlines the integration process for quick and hassle-free deployment in diverse scenarios.
Specifications
| Image Sensor | |
| Image Sensor | IMX219 |
|---|---|
| Still Resolution | 8 Megapixels |
| Video Modes | 1080p30, 640 × 480p30 |
| Sensor Resolution | 3280 × 2464 pixels |
| Sensor image area | 3.68 x 2.76 mm (4.6 mm diagonal) |
| Pixel Size | 1.12 µm x 1.12 µm |
| Optical Size | 1/4" |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Lens | |
| Focus Type | Fixed Focus |
| Focal Length | 3.04mm |
| F.NO | F2.0 |
| Field of View(FOV) | 62.2°(H)×48.8°(V) |
| Lens Type | Stock Lens |
| Focus Distance | 200mm to infinity |
| Electrical and Mechanical | |
| Camera Board Size | 25 × 24mm |
| Peaking Current | 300mA |
Package Including
- 1× Arducam V3Link d-ch Rx board
- 4× Arducam V3Link camera Tx board
- 4× 1m Fakra Z Female to Female RF Coaxial Cable
- 4× Arducam IMX219 Camera Module
- 4× 40cm 22-22pin FPC Cable
- 1× 15cm 22-22pin FFC Cable
- 1× Power Adapter
Note
- TI development board is not included in the package.
- This kit includes IMX219 camera modules and cannot be mixed with other sensors.
- The V3LINK solution also supports other camera modules, please contact sales for more details.
