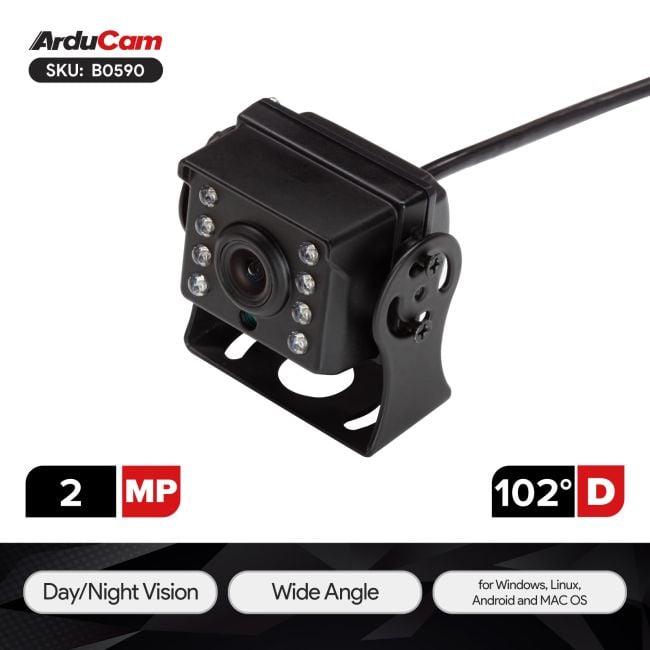

Arducam True Day & Night Vision USB2 UVC Camera with Metal Housing
SKU
B0590
- [True Day/Night Switching] Automatically switches between day and night modes for accurate color by day and clear IR imaging at night.
- [Enhanced Low-Light Performance] Powered by Sony STARVIS 2 sensor and 8 integrated IR LEDs for excellent clarity in dark environments.
- [Wide-Angle Coverage] 95° diagonal FoV fixed lens captures broad scenes with minimal distortion.
- [Plug-and-play] USB 2.0 UVC compliant, instantly recognized on Windows and Linux without extra drivers.
- [AI-Friendly Streaming] Supports YUV low-resolution output optimized for AI and computer vision applications.
$52.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam True Day & Night Vision USB2 UVC Camera is designed for reliable imaging around the clock. Featuring a Sony STARVIS 2 sensor and auto-switching feature, it delivers vibrant color in daylight and crisp infrared images in darkness. With 8 built-in IR LEDs, excellent low-light sensitivity, and a 95° wide-angle fixed lens, it captures clear, expansive views in any lighting condition. Its durable metal housing and USB 2.0 UVC compliance ensure easy plug-and-play integration on Windows and Linux, while AI-friendly low-resolution YUV output makes it ideal for computer vision and edge AI applications.
Applications
- Smart Home & IoT Devices
- Robotics & Drones
- Industrial Monitoring
- Wildlife & Outdoor Observation
- AI & Computer Vision Projects
Security & Surveillance
Features
- True Day/Night Switching – The camera automatically switches between daytime and nighttime modes. This ensures accurate, natural color reproduction during the day and clear infrared-sensitive images in low-light or complete darkness.
- Enhanced Low-Light Performance – Featuring a Sony STARVIS 2 image sensor with superior sensitivity, the camera maintains high-quality imaging even in dim environments. The 8 integrated IR LEDs provide additional illumination, enabling reliable performance where natural light is limited.
- Wide-Angle Coverage – The fixed 95° diagonal field of view lens captures broad scenes with a single camera, reducing blind spots and minimizing the need for multiple units in coverage-critical applications.
- Simple Plug & Play – Fully compliant with USB 2.0 UVC standards, the camera works instantly on Windows and Linux systems without the need for additional drivers or complex setup, making deployment fast and hassle-free.
- AI-Friendly Streaming – In addition to full-resolution video, the camera supports low-resolution YUV output optimized for AI workloads. This allows developers to efficiently run computer vision algorithms and edge AI applications with reduced processing overhead.
Specifications
| Image Sensor | |
| Sensor | SONY's STARVIS 2 Image Sensor |
| Max Still Resolution | 2 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.8″ |
| Output Format | MJPG/YUV/H.264 |
| Pixel Size | 2.9 µm x 2.9 µm |
| Sensor Active Area | 1920(H) x 1080(V) |
| Frame Rate(MJPG/H.264) | 1920x1080@30FPS, 1280x720@30FPS, 640x480@30FPS; |
| Frame Rate(YUV) | 640x480@30FPS, 320x240@30FPS; 320x320@30FPS, 128x128@30FPS; 96x96@30FPS; |
| Lens | |
| IR Sensitivity | Sensitive to visible light during the day, sensitive to IR at night with 850nm IR LEDs on. |
| Focus Type | Fixed Focus |
| FOV | 102°(D)×86°(H)×47°(V) |
| Lens Mount | M12 |
| F.NO | F1.0 |
| E.F.L | 3.9mm |
| Default Focus Range | 3M-INF |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Power Consumption | Max: 1.8W |
| Camera Board Size | 38mmX38mmX1.6mm |
| Overall Weight (Net) | 157g |
| Functionality and Compatibility | |
| Exposure Time Range | 10~50ms |
| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance(Auto/Manual), Backlight Contrast, Low Light Compensation, Gain, Exposure(Auto/Manual). |
| Standard and Certifications | |
| Temperature Range (Storage) | -14°F-167°F (-10°C to +75°C) |
| Temperature Range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | CE/RoHS |
Package Including
- 1 x Arducam 1080P Day and Night Vision USB2 UVC Camera Module
- 1 x 1m USB2 to B4B-ZR JST Cable
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
