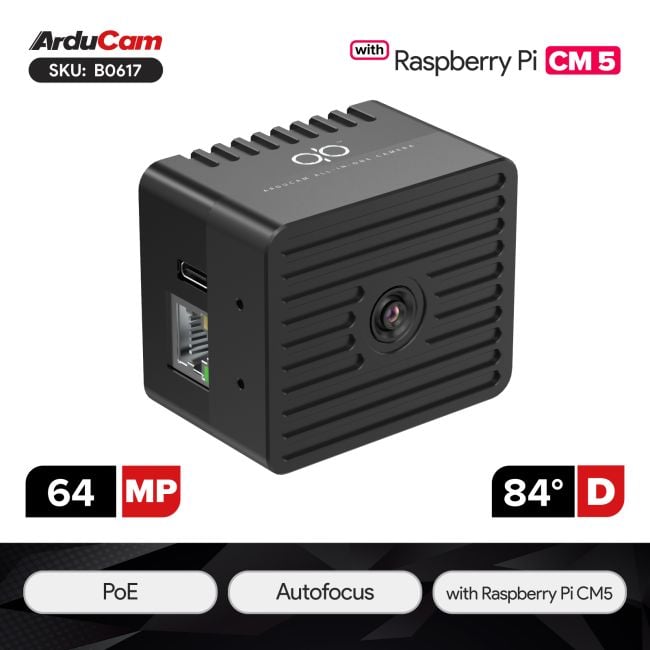

Arducam qb.R-OwlSight 64MP AF All-in-One Camera Kit (Raspberry Pi CM5)
SKU
B0617
- 64MP OwlSight Resolution: Ultra-high-def sensor for extreme detail and precision inspection.
- Built-in Pi CM5: Integrated Raspberry Pi CM5 for powerful, standalone edge computing.
- Fast Autofocus: Ensures sharp imaging instantly across various distances.
- Industrial "qb" Design: Ultra-compact, rugged cube form factor for tight-space integration.
- PoE & USB-C: Flexible power and data via Power over Ethernet or standard USB-C.
- OEM Customization: Fully tailorable hardware and firmware for industrial deployments.
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam qb.R-OwlSight marks a new era in standalone vision systems. As part of the qb collection, this camera reimagines high-performance imaging by packing a 64MP OwlSight sensor and a Raspberry Pi Compute Module 5 (CM5) into a single, sleek, industrial cube. This "All-in-One" philosophy eliminates the need for separate controllers and messy cabling, providing a ready-to-use edge AI platform straight out of the box. Arducam stands behind the qb series with a focus on industrial reliability and long-term support. We provide a bridge from initial prototype to mass production, offering extensive customization options and a stable supply chain. Whether you are building a standalone smart sensor or a complex vision network, the qb.R-OwlSight delivers the flexibility and power needed for modern industrial deployment.
Applications
- Automated Optical Inspection (AOI): Identify microscopic defects on PCBs or high-speed production lines with 64MP precision.
- Edge AI Vision: Run complex machine learning models (object detection, classification) directly on the camera using the CM5.
- Smart City & Traffic Monitoring: High-resolution capture for license plate recognition (LPR) and environmental monitoring via PoE.
- Laboratory & Medical Imaging: Compact, autofocus-enabled standalone camera for slide scanning and documentation.
- Digital Twinning & Photogrammetry: Capture ultra-detailed textures and geometry for high-fidelity 3D modeling.
Features
- OwlSight 64MP: Seeing the Unseen Our OwlSight technology provides a massive 64-megapixel canvas. This allows users to crop into specific areas of interest without losing the clarity required for AI analysis, making it a cost-effective alternative to multi-camera setups.
- The Power of Raspberry Pi CM5 By embedding the latest CM5, the qb.R-OwlSight functions as a full Linux computer. It handles image acquisition, processing, and data transmission internally, significantly reducing system latency and complexity.
- Industrial "qb" Form Factor The "qb" series isn't just about looks—its cube-shaped industrial housing is designed for heat dissipation and durability. Its small footprint makes it ideal for mounting on robotic arms or inside narrow machinery.
- Single-Cable Efficiency with PoE With Power over Ethernet (PoE) support, you can transmit power and high-speed data over a single cable up to 100 meters. This simplifies installation in warehouses, factories, and outdoor environments.
- Total Customization & Flexibility Arducam understands that one size doesn't always fit all. The qb.R-OwlSight is designed for modularity; we offer customization for lenses, enclosures, and specialized firmware to ensure the camera fits your exact project requirements.
Specifications
| Camera | |
| Sensor | OV64A40 |
| Resolution | 64 Megapixels |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/1.32" |
| Output Format | JPEG/YUV/RGB/RAW10 |
| Pixel Size | 1.008 µm x 1.008 µm |
| Sensor Active Area | 9248(H)×6944(V) |
| Sensor Image Area | 6.29 mm x 4.71 mm (7.86 mm diagonal) |
| Maximum Frame Rate | 9152×6944@2fps, 8000×[email protected]; 4624×[email protected], 3840×[email protected]; 2312×[email protected], 1920×1080@45fps |
| Lens | |
| Focus Type | Autofocus |
| FOV | 84°(D)×68°(H)×56°(V) |
| Lens Mount | Stock Lens Mount |
| F.NO | F1.9 |
| E.F.L | 6.65mm |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Default Focus Distance | 12cm-INF |
| Controller Properties | |
| Controller Module | Raspberry Pi Compute Module 5, CM5004016 |
| Processor | Broadcom BCM2712 |
| RAM Memory | 4GB |
| Storage | 16GB of eMMC Flash Storage |
| Wi-Fi Connectivity | Not Available |
| Bluetooth Connectivity | Not Available |
| Functionality and Compatibility | |
| Interface | PoE/USB-C |
| Network Support | Ethernet |
| Supported OS | Raspberry Pi OS |
| Max Exposure Time | Low Speed Mode - 9152×6944: 1173.95(s) High Speed Mode: 9152×6944: 910.88(s) See fully details here |
| Supported Platform | Raspberry Pi CM5 inside |
| Electrical and Mechanical | |
| Operating Voltage | USB-C: 5.1V/3.0A PoE Power Input: IEEE 802.3at PoE/50-57V 600mA |
| Power Consumption (Typical, Maximum) | Typical: N/A Max:15W |
| Overall Weight (Net) | 168g |
| Camera Board Size | 25x24 mm |
| Overall Size | 60x50x40 mm |
| Standard and Certifications | |
| Temperature range (Storage) | -14°F-167°F (-10°C to +75°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | CE/RoHS |
Package Including
- 1 x Arducam qb.R-OwlSight 64MP AF Camera All-in-one Kit with RPI CM5 inside
Notes
- Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.
- This product kit includes the Raspberry Pi CM5 preloaded with Specific OS. It is recommended to use only this platform.
- For optimal performance, we suggest using the official Raspberry Pi 27W power supply.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
