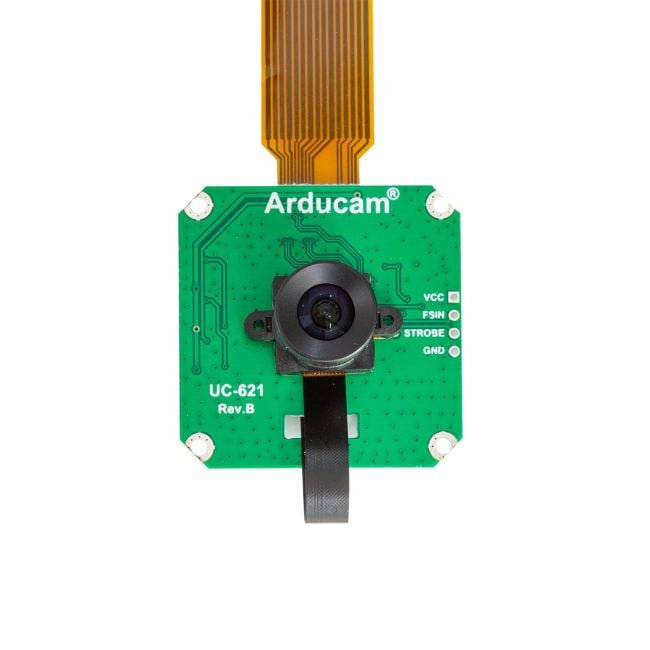

Arducam 2MP OV2311 Global Shutter NoIR Mono Camera Modules for Raspberry Pi

Overview

Arducam 2MP OV2311 Global shutter camera module is mainly designed for Raspberry pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. This camera is based on 1/2.9-inch Omnivision OV2311 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 60fps in full resolution at 2-lane MIPI bus with complete user control over image quality.

Due to the sensor's high resolution, the OV2311 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.

Features:

• Sensors
• Sensor: Global Shutter OV2311 Monochrome
• Pixel size: 3 µm x 3 µm
• Active array size: 1600 x 1300
• Optical Format size: 1/2.9"
• Maximum image transfer rate: 1600 x 1300: 60 fps
• Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
• Input clock frequency: 6~27 MHz
• Max S/N ratio: 37.4 dB
• Dynamic range: 68 dB
• Lens
• Lens Thread: M12 x 0.5P
• Field of View(FoV): 83°(H)
• IR Sensitivity: without IR Filter, IR sensitive
• Camera Module
• Output interface: 2-lane MIPI
• Output formats: RAW 8/10 bit
• Minimum exposure time: 1 row period (11.3us at the resolution of 1600x1300 on Raspberry Pi)

Applications:

• Augmented and virtual reality
• Drones
• 3D imaging
• Machine vision
• Industrial bar code scanning
• Industrial automation
