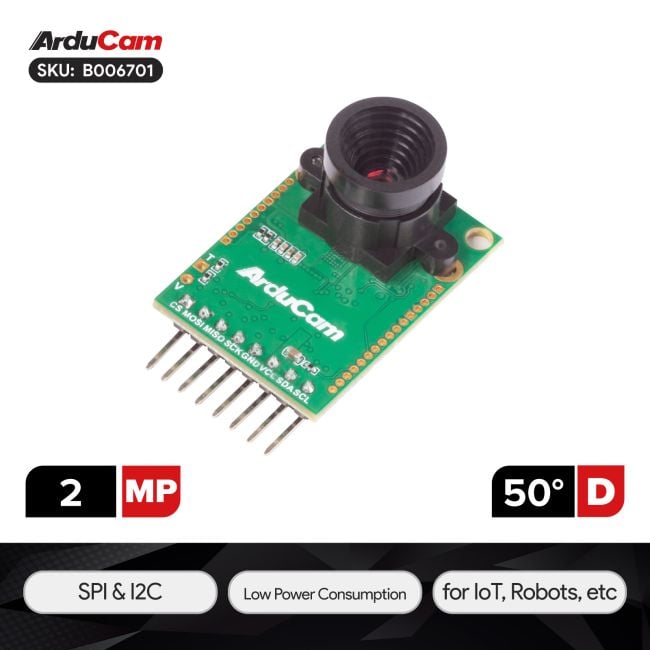

Arducam New 2MP Mini SPI Camera Module for Arduino UNO, Raspberry Pi Pico and other MCU
SKU
B006701
- 2MP New Mini SPI Camera for MCU, SoC, ARM, DSP, FPGA, etc.
- M12 mount holder with changeable Lens options
- Open Source Code Library and Complete SDK
- I2C interface for the sensor configuration
- SPI interface for camera commands and data stream
- Click Here to get our Mega SPI series camera
$25.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam New 2MP Mini SPI Camera is a new generation high-definition 2MP SPI camera, which reduces the complexity of the camera control interface. It integrates 2MP CMOS image sensor and provides miniature size, as well as an easy-to-use hardware interface and open source code library. The Arducam Mini SPI Camera series can be used on any platform like Arduino, Raspberry Pi, Maple, STM32, ESP32, or Beaglebone black, as long as they have SPI and I2C interface. Arducam Mini SPI Camera not only offers the capability to add a camera interface that doesn’t have in some low-cost microcontrollers but also provides the capability to add multiple cameras to a single microcontroller. Beyond the Hardware, Arducam offers a wealth of customization options such as resolution, frame rate, ROI, exposure time, and lens selection,etc., covering application areas like IoT, machine vision assistance, and field monitoring.
Applications
- IoT cameras
- Robot cameras
- Wildlife cameras
- Other battery-powered products
- Can be used in MCU, Raspberry Pi, ARM, DSP, and FPGA platforms
Features
- Broad Platform Compatibility: Supports a wide range of platforms including Arduino, Raspberry Pi, STM32, ESP32, and FPGA via standard SPI and I2C interfaces, enabling easy integration even on resource-limited devices.
- Compact Design with M12 Lens: Miniature form factor with an M12 mount allows interchangeable lenses, making it suitable for space-constrained and application-specific deployments.
- Easy Integration with Open-Source SDK: Provides an open-source code library and SDK to simplify development and accelerate implementation of image capture and control functions.
- Dual Interface for Control and Data: Uses I2C for sensor configuration and SPI for command and image data transmission, ensuring efficient control and stable data flow.
- Multi-Camera Scalability: Supports connecting multiple cameras to a single controller, with adjustable imaging parameters for flexible use in IoT and vision applications.
Specifications
| Camera | |
| Sensor | 2MP CMOS Image Sensor |
| Resolution | 2 Megapixels |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/4" |
| Output Format | JPEG RGB |
| Pixel Size | 2.28µm x 2.28µm |
| Sensor Active Area | 1600(H)×1200(V) |
| Sensor Image Area | 3.65 mm x 2.74 mm (4.56 mm diagonal) |
| Resolution List | 1600x1200, 1280x1024, 1024x768; 800x600, 640x480, 352x288; 320x240, 176x144, 160x120; |
| Lens | |
| Focus Type | Fixed Focus |
| FOV(DxHxV) | 50°(D)×40°(H)×30°(V) |
| Lens Mount | M12 Mount |
| F.NO | F2.2 |
| E.F.L | 4.9mm |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| TV-Distortion | <-1.0% |
| Default Focus Distance | 260cm~INF |
| Weight | 2g |
| Functionality and Compatibility | |
| Interface | SPI, I2C |
| Supported Platforms | Arduino, ESP32, Raspberry Pi Pico, etc.. |
| SDK Support | Support |
| SPI Speed | Max 8MHz |
| Frame Buffer | 8MByte |
| Camera Controls | Light Mode(Auto, Sunny, Cloudy, Office, Home), Color Saturation, Brightness, Contrast, Special Effects(Normal, B&W Negative, Negative, B&W, Reddish, etc.), Exposure Time Adjustment, Analog Gain, Power Mode(Normal, Low) |
| Electrical and Mechanical | |
| Operating Voltage | 3.3V/5V |
| Power Consumption | Max:0.7W |
| Camera Board Size | 34x24mm |
| Camera Overall Weight (Net) | 5.7g |
| Overall Size | 34x24x16.8mm |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +75°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS |
Package Including
- 1 x Arducam New 2MP Mini SPI Camera module for MCU
- 1 x Dupont cable
Documentation
- Introduction
- Arducam Shield Mini 2MP Plus
- Software Guide
- Arducam 2MP Mini Camera Module for Micro:bit
- SPI Camera for Raspberry Pi Pico
- User guide.pdf
- Datasheet.pdf
- SPI Camera Software Application Note
- User guide for Pico.pdf
- Arducam Github
Video
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
