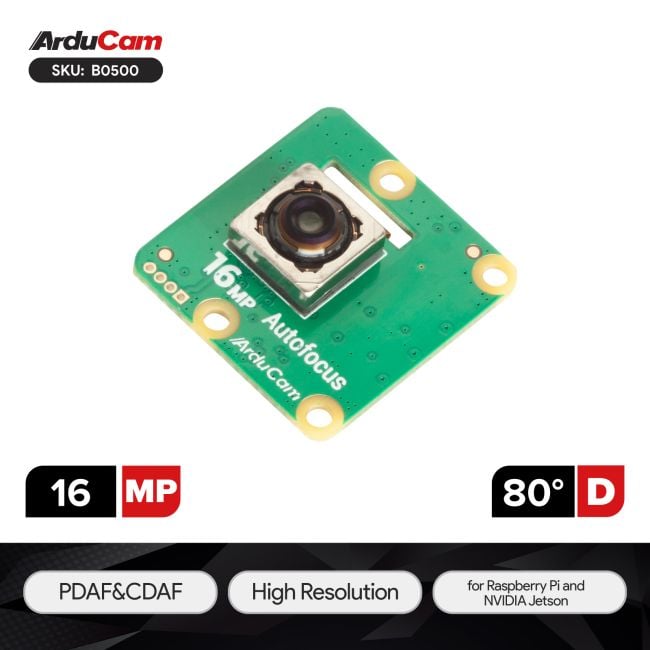

Arducam IMX519 PDAF&CDAF Autofocus Camera Module for Raspberry Pi, NVIDIA® Jetson Orin Series

Overview

A 16MP autofocus high-resolution camera board that takes what Raspberry Pi V1, V2, and HQ have to offer, and excels in every single aspect. It takes zero compromises in specs. With a resolution of 16 megapixels (compared to 8MP and 12MP), an autofocus lens, a V2-like form factor, and boatloads of improvements, the camera provide a better choice for a whole world of industrial/consumer/etc. applications, it’s compatible with any existing Pi models, work with the latest software from the foundation, and leverages the same tuning algorithms used in the official camera modules. Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera into NVIDIA Jetson Orin kernel.

---

Applications

• Time-lapse Machine
• DSLR Camera Control
• Security System
• Smart Video Doorbell
• Face Recognition
• Instant (Polaroid-Style) Camera, etc.

---

Features

• High-Resolution Camera: Utilizes the IMX519 CMOS sensor with a 16MP capacity, ensuring exceptional sharpness and clarity for both images and videos.
• Crisp Imaging: Delivers stunning still images at a maximum resolution of 4656*3496 pixels and supports various frame rates, including 1080p60, 4656x3496 at 9fps, and 3840x2160 at 20fps, providing flexibility for different recording needs.
• Compact Design: Featuring a mini camera board size of 24x25mm, this module offers a compact form factor that seamlessly integrates into various projects, providing versatility without compromising on quality.
• Tailored Compatibility: Compatible with Raspberry Pi and NVIDIA Jetson platforms, this IMX519 camera module ensures effortless integration with these devices, allowing users to fully utilize its capabilities without compatibility issues.
• User-Friendly Setup: Requires only straightforward driver installation, making the setup process hassle-free and convenient for both beginners and experienced users alike.

---

Specifications

Image Sensor
Sensor	IMX519
Still Resolution	16 Megapixels
Color Filter Type	Color
Shutter Type	Rolling Shutter
Optical Size	1/2.53"
Sensor Output Format	RAW
Platform Output Format	JPEG/YUV/RGB/RAW10
Pixel Size	1.12 µm x 1.12 µm
Sensor Active Area	4656 × 3496 pixels
Frame Rate	4656x3496@9fps, 3840x2160@20fps, 1920x1080@60fps, 1280x720@80fps
Lens Specs
Focus Type	Auto Focus
FOV	80°(D)×67°(H)×53°(V)
Lens Mount	Stock Lens Mount
F.NO	F1.75
E.F.L	4.28
Default Focus Range	10cm to infinity
IR Sensitivity	Integrated 650nm IR filter
Electrical and Mechanical
Operating Voltage	3.3V
Temperature Range(Operating)	-4°F-167°F (-20°C to +75°C)
Temperature Range(Stable Image)	32°F-122°F (0°C to +50°C)
Power Requirements(Kit)	1W
Overall Size	25x24 mm
Functionality and Compatibility
Interface	MIPI CSI-2
Supported OS	Linux OS
Supported Platform	Raspberry Pi, NVIDIA Jetson

---

Package Including

• 1 x Arducam 16MP-AF Camera Module
• 1 x 22pin to 22pin FFC Cable (15cm)
• 1 x 15pin to 22pin FFC Cable (15cm)

---

Notes

• Raspberry Pi board is not included in the package.
• This camera is released for the official NVIDIA® Jetson™ Developer Kit, and it does not guarantee to support other third-party boards.

Note on Supported Raspberry Pi Boards and OS
Platform	Trixie(rpicam)	Bookworm(rpicam)	Bullseye(libcamera)	Buster(raspistill)
Raspberry Pi 5	√	√
Raspberry Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W	√	√	√
Raspberry Pi CM3 / CM3+ / CM4 / CM5 (extra adapter board required)	√	√	√

---

Documentation

• Arducam IMX519 Camera for Raspberry Pi
• Arducam IMX519 Camera for NVIDIA Jetson
• 3D Drawing

---
