[Discontinued] Arducam 12MP IMX577 Motorized Focus High Quality Camera For DepthAI OAK
SKU
B0369
$79.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview

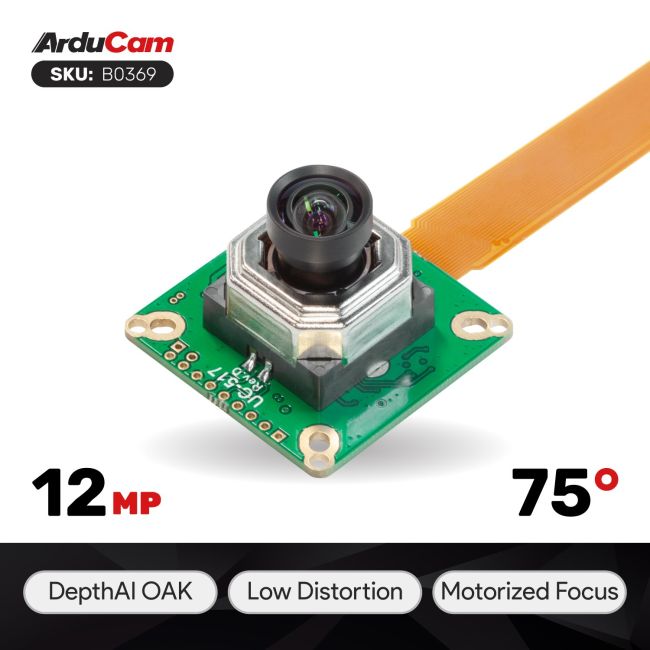

The Arducam 12MP IMX577 Motorized Focus MIPI camera module is designed for DepthAI OAK,
Supported DeptAI version: BW1098FFC R0M0E0
Specifications
- Sensor: 12MP IMX577
- Pixel Size: 1.55 μm x 1.55 μm
- Active array size: 4056x 3040
- Optical Size: 1/2.3 inch
- Focusing Range: 8cm ~ infinite
- IR Sensitive: With IR filter
- Output interface: MIPI 2-Lane
- Output formats: RAW8/RAW10
- Maximum frame rate: 4k@60fps
- H.265 frame rate: 4k@30fps
- Board Size: 38mm x 38mm
- Lens: Low distortion M12 lens (Part Number: M23390H08)
- EFL: 3.9mm
- F.N: 2.8
- HFOV: 75 Deg
Package Including
- 1 pcs Arducam 12MP IMX577 Motorized Focus camera module 22pin for DepthAI OAK
- 1 pcs 150mm 22pin-26pin FPC cable
