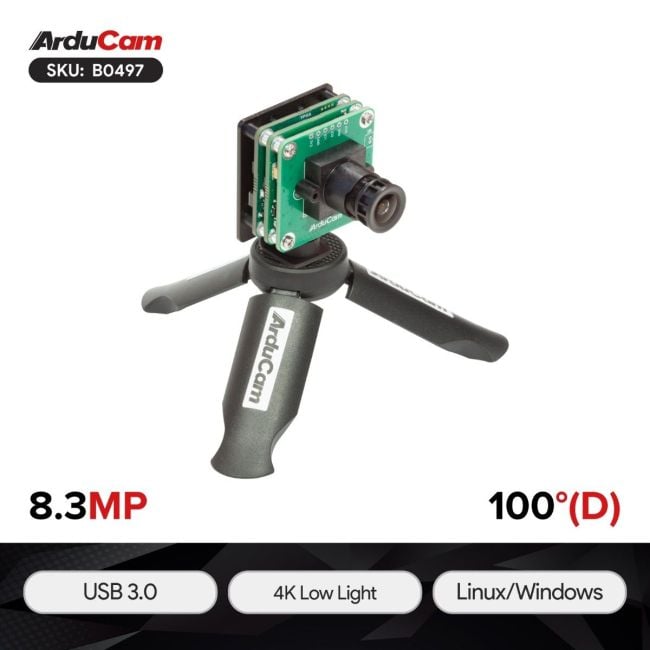

Arducam 8.3MP Sony STARVIS 2 IMX678 Ultra Low Light Manual Focus USB 3.0 Camera Module-Without Enclosure
SKU
B0497-1
- Effortless Plug-and-Play Integration.
- Based on 4K Starvis 2 IMX678, max still resolution 3840×2160.
- Proprietary on-board ISP advances image enhancement
- Programmable frame rates, reach up to 90fps@720p
- M12 manual focus lens for Precision focus and wide 100°(D) view.
$159.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Introducing Arducam's newest USB 3.0 camera – the Low-Light Series. Featuring the Starvis2 CMOS IMX678, it captures high-quality images at 3840*2160 resolution, even in challenging lighting.
Paired with a night vision M12 lens, it ensures accurate video capture in low light. The advanced on-board ISP enhances image quality, and with a configurable frame rate of up to 90fps via USB 3.0, it combines flexibility with high performance.
Arducam's latest USB 3.0 camera excels in user-friendly plug-and-play functionality. Compatible with Windows and Linux, no additional drivers are needed, simplifying setup. Its backward compatibility with USB 2.0 host ports ensures seamless connectivity and flexibility for an enhanced user experience.
Applications
- Machine Vision
- Video Surveillance
- 3D Scanning and Metrology
- Live Streaming
- Video Conferencing
Features
- Cutting-edge Sensor Technology: Leverage the power of the 4K Starvis2 IMX678 CMOS, providing advanced low-light for superior image capture at a maximum resolution of 3840x2160.
- USB 3.0 High-Speed Connectivity: Achieve swift streaming at 90fps in 720p, coupled with exceptional low-light performance, ensuring optimal video capture even in challenging lighting conditions.
- Precision Perspective: Equipped with a night vision lens featuring an F1.65 aperture and an expansive 100°(D) field of view, guaranteeing sharp and clear images, even in wide viewing angles for comprehensive coverage.
- Advanced Image Enhancement: Benefit from onboard ISP with proprietary technologies such as de-Bayer, gamma, BLC, AE, AWB, CCM, and RGB2YUV, ensuring advanced image enhancement and top-notch image quality.
- Plug and Play: Seamlessly compatible with Windows and Linux through plug-and-play functionality, eliminating the need for additional drivers, and ensuring a hassle-free user experience.
Specifications
| Image Sensor | |
| Sensor | IMX678 |
|---|---|
| Still Resolution | 8.3 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/1.8" |
| Output Format | YUY2 |
| Pixel Size | 2 × 2 μm |
| Sensor Active Area | 3856(H) × 2180(V) |
| Frame Rate (USB 3.0) | 3840x2160@15fps, 1920x1080@60fps, 1280x720@90fps |
| Frame Rate (USB 2.0) | 1280x720@10fps |
| Lens | |
| Focus Type | Manual Focus |
| FoV | 100°(D) × 88°(H) × 72(V) |
| Lens Mount | M12*P0.5 |
| F.NO | F1.65±10% |
| E.F.L | 4.9±5% |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Default Focus Range | 3m-∞ |
| USB Interface | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.48W , Min: 0.86W |
| Camera Board Size | 34×34 mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Backlight Comp, Exposure (Manual/Auto) |
Package Including
- 1 x IMX678 USB3.0 Camera Module with Back Cover and Tripod Adapter
- 1 x 1m USB A to Type-C Cable
Note
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
