Arducam 5MP MIPI Camera for AVNET MaaXBoard SBC Boards and RZBoard V2L with Renesas RZ/V2L Processor
SKU
B0470
$19.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview

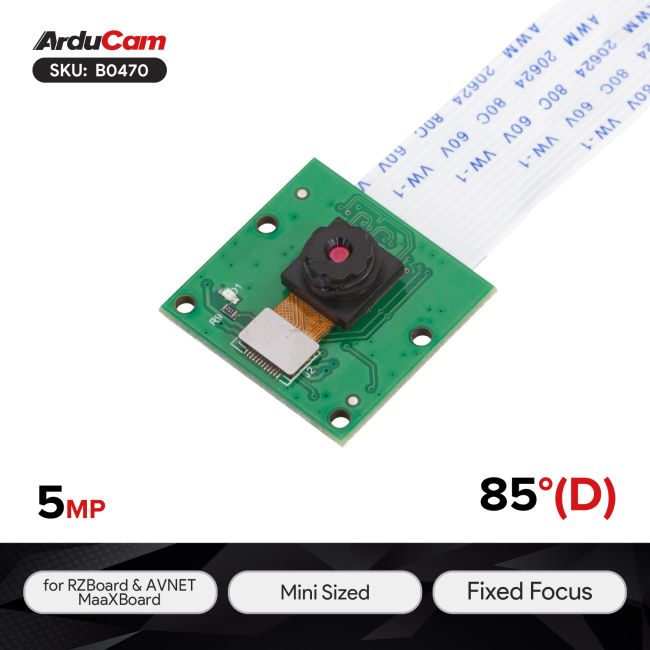

This camera module is supported by AVNET MaaXBoard SBC Boards and RZBoard V2L. The camera is based on OmniVision 5MP image sensor with max frame rate: 30fps@1080p. The board itself is tiny, at around 25mm x 24mm, which makes it perfect for mobile or other applications where size and image quality are important.
Specifications
Camera
| Video Modes | 1080p@30fps |
|---|---|
| Sensor Resolution | 5MP 2592×1944 |
| Pixel Size | 1.4 µm × 1.4 µm |
| Optical Size | 1/4" |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
Lens
| Focus Type | Fixed Focus |
| Focal Length | 4.22mm |
|---|---|
| F.NO | F2.0 |
| Field of View(FOV) | 84.2°(D) |
| Distortion | ＜1.0% |
Electrical & Mechanical
| Camera Board size | 25 x 24 mm |
| Peaking Current | 300mA |
|---|
Package Including
- 1×Camera Module
- 1×15cm Female to Female Dupont Cable
- 1×15cm FPC Cable
Documentation
- Quick Start Guide for Renesas RZBoard V2L
- Available Extension Solutions
- Quick Start Guide for AVNET MaaXBoard SBC Boards
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
