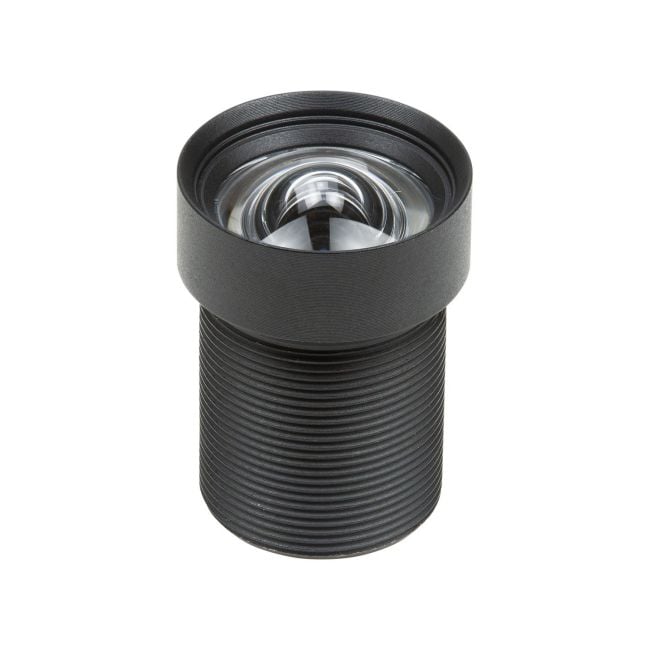

Arducam 1/2.5" M12 Mount 4mm Focal Length Low Distortion Camera Lens M2504ZH05S
SKU
LN011
$12.99
Overview
Specifications
Wiki
Documents
Video
Customization
Features
- Arducam Lens M2504ZH05S featuring low distortion
- Module number: M2504ZH05S
- Optical Format: 1/2.5”
- Distortion: 1%
- Effective Focal Length: 4mm
- 35mm equivalent focal length: 43.25mm
- FOV on 1/2.5”sensor(D/H/V): 96°/75°/60°
- FOV on 1/2.7” sensor(D/H/V): 80°/72°/45°
- FOV on 1/2.8” sensor(D/H/V): 78°/70°/43°
- FOV on 1/2.9” sensor(D/H/V): 76°/68°/42°
- FOV on 1/4”RPi Camera: 45°
- F/NO: 2.8
- Mount: M12
- Length Holder Height: 13mm
- Size: 14mm x18.7mm
- Weight: 5g
- IR Sensitivity: sensitive to visible light, with 650nm IR filter
Package Including
- 1pcs Arducam 1/2.5" M12 Mount 4mm Focal Length Low Distortion Camera Lens M2504ZH05S
Note
- Lens holder NOT included, you could find holder options following.
- Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.
Documentation
Datasheet.pdf |
3D drawing.stp |
