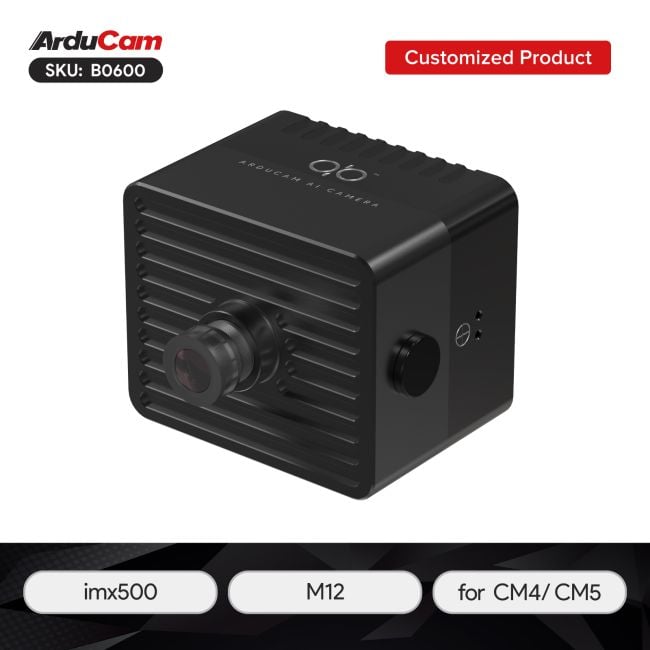

All-in-one IMX500 M12 AI Camera Kit with CM4/CM5 inside, PoE & USB Power, Compact & Versatile, Arducam qb

Overview

Arducam, Edge, AI Camera. Where they intersect, magic happens.

Arducam

Arducam’s embedded vision expertise transforms the IMX500 into a universal AI camera series, with its AI Model Zoo extending beyond Sony AITRIOS™ templates.

Edge

By processing data directly on-device, Edge AI delivers instantaneous responses, guarantees privacy, and operates flawlessly even in zero-connectivity environments — redefining reliability for critical applications.

AI Camera

The IMX500 integrates pixel sensing and AI computation into a single chip, bypassing traditional server dependencies to achieve unprecedented efficiency in vision AI solutions.

---

Applications

These application examples are for reference only; please contact us for specific details.
• Object Detection Autonomous Driving: Identifying pedestrians, vehicles, and traffic signs on the road. Security Surveillance: Real-time detection of suspicious activities or intruders. Industrial Automation: Monitoring production lines for defective products or anomalies. Drone Monitoring: Recognizing and tracking specific objects, such as wildlife or cargo.
• Segmentation Medical Imaging Analysis: Segmenting tumors or organs in MRI or CT scans. Intelligent Traffic Systems: Segmenting roads and lane markings to optimize navigation systems. Agricultural Monitoring: Analyzing crop growth and identifying pests or diseases through image segmentation. Augmented Reality: Segmenting and replacing backgrounds in real-time video to enhance user experience.
• Pose Estimation Fitness Applications: Real-time monitoring of user movements to provide feedback and improvement suggestions. Virtual Reality: Tracking user body movements to enhance immersion. Human-Computer Interaction: Implementing contactless control through gesture recognition for smart home devices. Animation Production: Capturing actors' movements and translating them into animations for digital characters.
• Classification Image Recognition: Identifying and classifying content in social media images (e.g., landscapes, people, animals). Sentiment Analysis: Analyzing text or voice data to determine user emotional states. Spam Filtering: Classifying emails as either legitimate or spam. Product Recommendation Systems: Classifying products based on user behavior and preferences to provide personalized recommendations.

---

Features

Arducam’s One-stop Vision AI Solution
Powered by Sony IMX500 AI Vision Sensor
Enhanced with Sony AITRIOS™ AI Platforms
Extended with Arducam M12 Lenses

• SMART AI at the Edge, Simplified Sony’s IMX500 combines image processing and AI on a single chip, reducing costs and enhancing efficiency for edge AI deployment. Arducam’s AI Model Zoo complements this with a library of pre-trained models for specialized applications, bridging convenience with real-world complexities.
• SHARP
  Engineered Clarity
  The IMX500’s 12.3MP resolution is optimized through Arducam’s expertise, delivering exceptional image quality in various conditions. Integration IMX500 Image Sensor ensures seamless performance and clarity, making it ideal for rapid deployment in edge vision applications.
• VERSATILE
  One Ecosystem, Infinite Configurations
  Arducam offers flexible hardware solutions from standalone modules to all-in-one systems, catering to diverse needs from prototyping to mass production. Compatible with various tech stacks, it supports easy deployment across different platforms, ensuring no application is left behind.
• USER-FRIENDLY
  Effortless Edge AI
  Designed for low-power edge AI, Arducam products are compact and developer-ready, allowing for quick setup and operation. Users can go from unboxing to inference in just 10 minutes, making it accessible for various applications.
• [Read this if you are getting an IMX500 compatible AI model] Users of Arducam IMX500 Cameras can explore the Arducam IMX500 AI Model Zoo here to quickly get started with vision AI.

---

Specifications

Image Sensor
Sensor	IMX500
Still Resolution	12.3 Megapixels
Color Filter Type	Color
Shutter Type	Rolling Shutter
Optical Size	1/2.3"
Output Format	RAW10
Platform Output Format	JPEG/YUV/RGB/RAW10
Pixel Size	1.55 µm x 1.55 µm
Sensor Active Area	4056 × 3040 pixels
Frame Rate	2028×1520@30fps; 4056×3040@10fps
Lens Specs (Default Lens)
Focus Type	Fixed Focus
FOV	82°(D)×72°(H)×56°(V)
Lens Mount	M12-S Mount
F.NO	F3.0±5%
E.F.L	4.30±5%
Default Focus Range	260cm to infinity
IR Sensitivity	Integrated 650nm IR filter
Lens Options	Please contact Arducam Sales for more available Lens options
Electrical and Mechanical
Operating Voltage	USB-C: 5.1V/3.0A PoE Power Input: IEEE 802.3at PoE/50-57V 600mA
Temperature Range(Operating)	-4°F-167°F (-20°C to +75°C)
Temperature Range(Stable Image)	32°F-122°F (0°C to +50°C)
Power Requirements(Kit)	15W
Overall Size	60 × 50 × 50 mm (with Default Lens)
Functionality and Compatibility
Interface	PoE/USB-C
Network Support	Ethernet
Exposure Time Range	4056x3040: 0.192~201711.828 ms; 2028x1520: 0.101~105904.344 ms;
Supported OS	Raspberry Pi OS
Supported Platform	Raspberry Pi CM4/CM5

---

Package Including

• 1 x Arducam qb RPI Compute Module All-in-one, IMX500 M12 Lens AI Camera Kit

---

Notes

• Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.
• This product kit includes the Raspberry Pi CM4/CM5 preloaded with OS and software. It is recommended to use only this platform.
• For optimal performance, we suggest using the official Raspberry Pi 27W power supply.

---

Documentation

• Quick Start Guide
• Arducam IMX500 AI Model Zoo
• Raspberry Pi IMX500 AI Model Zoo

---
