HDR*: The HDR feature is disabled by default. Activation requires enabling the Low-light Compensation option in the parameters GUI.

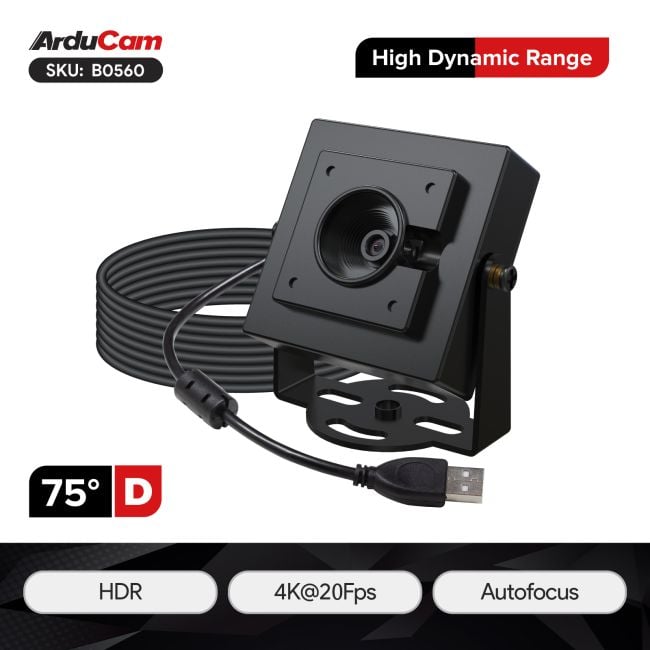

4K HDR AutoFocus USB2.0 UVC Camera, Arducam ezBOX-HDR
SKU
B0560
- [HDR Across All Resolutions] Consistent performance in diverse lighting conditions.
- [Versatile FPS-Res Combinations] 6 options, from 4K@20fps to VGA@30fps, meeting diverse imaging needs.
- [Maximized Active Sensor Area] No pixel wasted, delivering optimal image quality.
- [USB 2.0 UVC Compliance] Plug-and-play, no additional drivers needed.
- [Autofocus Lens] Ensures sharp focus for every shot.
- [Proprietary ISP] Full control over brightness, contrast, saturation, white balance, gain, focus, and exposure.
$59.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
ezBOX-HDR excels in delivering exceptional dynamic range with its SONY 4K HDR sensor, featuring 8.3MP resolution. It maximizes the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. The HDR functionality is supported across all resolution and frame rate combinations, providing consistent performance in diverse imaging scenarios.
Applications
- Robotics
- Precision Agriculture
- Industrial Imaging
- Outdoor Surveillance
- Medical Imaging
- We Welcome You to Test: Explore the ezBOX-Swift in your own applications and share your results with us—or contact us for custom orders tailored to your specific needs!
Features
- ezBOX-HDR: Exceptional Dynamic Range for Diverse Scenarios
- SONY 4K HDR Sensor for Superior Imaging: The ezBOX-HDR is powered by a SONY 4K HDR sensor, delivering 8.3MP resolution and exceptional dynamic range. Its ability to capture details in both bright and dark areas makes it perfect for industrial imaging, surveillance, and applications requiring high contrast.
- HDR Across All Resolutions: Unlike many cameras, the ezBOX-HDR maintains its high dynamic range performance across all resolutions, ensuring consistent image quality in diverse lighting conditions. This feature is particularly valuable for scenarios with challenging lighting, such as outdoor environments or high-contrast industrial settings.
- Maximized Active Sensor Area: The ezBOX-HDR utilizes its sensor’s full active area, ensuring no pixel is wasted. This optimization results in sharper, more detailed images, making it a reliable choice for applications where precision and clarity are paramount.
Specifications
| Image Sensor | |
| Sensor | SONY 4K HDR Color Sensor |
| Max Resolution | 8.3MP |
| Color Filter Type | Color |
| Shutter Type | Rolling Shutter |
| Optical Size | 1/2.8″ |
| Output Format | MJPG |
| Pixel Size | 1.68 µm x 1.68 µm |
| Sensor Active Area | 3840(H) x 2160(V) |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Frame Rates | 3840x2160@20fps, 3264x2448@25fps, 2592x1944@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps |
| Lens | |
| Focus Type | Autofocus |
| FOV | 75°(D)×61°(H)×50°(V) |
| Lens Mount | Stock Lens |
| F.NO | F1.8 |
| E.F.L | 3.95mm |
| Programmable Focus Range | 10cm-∞ |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5V |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Consumption | 1.75W |
| Camera Board Size | 32mmX32mmX1.6mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | HDR*, Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto) |
Package Including
- 1 x 4K HDR Color USB2 UVC Camera
- 1 x 1m USB2 to B4B-ZR JST Cable
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
