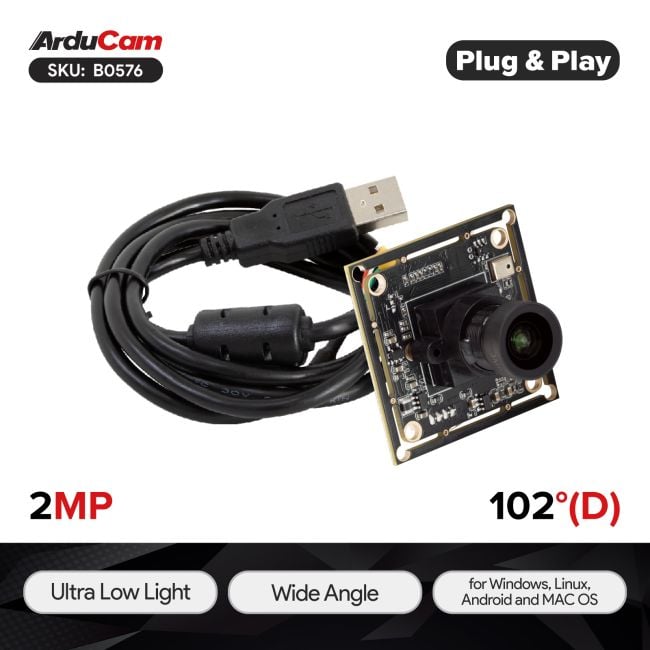

2MP IMX662 Ultra Low Light USB2 UVC Camera
SKU
B0576
- [Ultra Low Light] Leveraging Sony STARVIS2 technology with high quantum efficiency (QE), delivering sufficient details in low light environments.
- [Good choice for Challeging Lighting] Perfect for security cameras and fast-moving targets, ensuring balanced exposure in high-contrast scenarios.
- [Plug-and-play] USB 2.0 UVC Compliance, works instantly on Windows and Linux without additional drivers.
- [Fixed Wide-Angle Lens] 102° diagonal FoV captures expansive scenes.
- [Rich ISP Controls] Fine-tune every detail with manual/auto adjustments for brightness, contrast, white balance, exposure, gain, and more.
As low as
$55.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Elevate your imaging capabilities with our cutting-edge 2MP USB camera module, powered by Sony’s STARVIS2 sensor for exceptional low-light performance. Designed for security, surveillance, and dynamic scene capture, this plug-and-play solution combines super clarity, a 102° wide-angle lens, and rich ISP controls—all in a compact, driver-free package.
Applications
- Security & Surveillance
- Industrial Machine Vision
- Smart Retail & IoT
- Teleconferencing & Live Streaming
Features
- Ultra Low Light Performance with STARVIS2 Technology: Harnessing Sony’s second-generation STARVIS sensor, this camera achieves unmatched sensitivity in near-dark environments. The back-illuminated pixel structure and high quantum efficiency (QE) enable clear imaging at <0.1 lux illumination (e.g., moonlight conditions). Ideal for 24/7 surveillance, automotive night vision, or industrial inspection where traditional sensors fail.
- Excellent Performance for Challenging Lighting: Whether capturing license plates under glaring sunlight or faces in backlit rooms, the IMX662 delivers balanced exposure without motion blur—critical for security and traffic monitoring.
- True Plug-and-Play USB 2.0 UVC Compliance: Eliminate complex setups with universal driver-free compatibility. The camera adheres to USB Video Class (UVC) standards, ensuring seamless integration with Windows and Linux, and embedded systems (e.g., Raspberry Pi). Just connect via USB 2.0 for instant recognition in vision software.
- Wide-Angle Lens: The fixed 102° diagonal FoV lens captures expansive scenes—perfect for conference rooms, retail spaces, or drone navigation. Multi-layer coating reduces glare and flare, while the IR filter ensures accurate color reproduction in daylight.
- Comprehensive ISP Controls for Precision Tuning: Go beyond basic adjustments with granular Image Signal Processor (ISP) controls: - Exposure/Gain: Manual or auto modes for low-light optimization. - White Balance: Auto/Manual for accurate hues under mixed lighting. - Advanced Parameters: Backlight compensation, sharpness (edge enhancement), gamma correction, and low-light boost (LLC) for tailored image quality.
Specifications
| Image Sensor | |
| Sensor | SONY's STARVIS 2 Image Sensor |
| Max Still Resolution | 2 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.8″ |
| Output Format | MJPG/YUV/H.264 |
| Pixel Size | 2.9 µm x 2.9 µm |
| Sensor Active Area | 1920(H) x 1080(V) |
| Frame Rate(MJPG/H.264) | 1920x1080@30FPS, 1280x720@30FPS, 640x480@30FPS; |
| Frame Rate(AI Resolution) | 640x480@30FPS, 320x320@30FPS, 320x240@30FPS, 128x128@30FPS; 96x96@30FPS; | Lens |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Focus Type | Fixed Focus |
| FOV | 102°(D)×86°(H)×47°(V) |
| Lens Mount | M12 |
| F.NO | F1.0 |
| E.F.L | 3.9mm |
| Default Focus Range | 3m-INF |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5V |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Consumption | 1.5W |
| Camera Board Size | 38mmX38mmX1.6mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance(Auto/Manual), Backlight Contrast, Low Light Compensation, Gain, Exposure(Auto/Manual). |
Package Including
- 1 x Arducam Ultra Low Light USB2 UVC Camera Module
- 1 x 1m USB2 to B4B-ZR JST Cable
