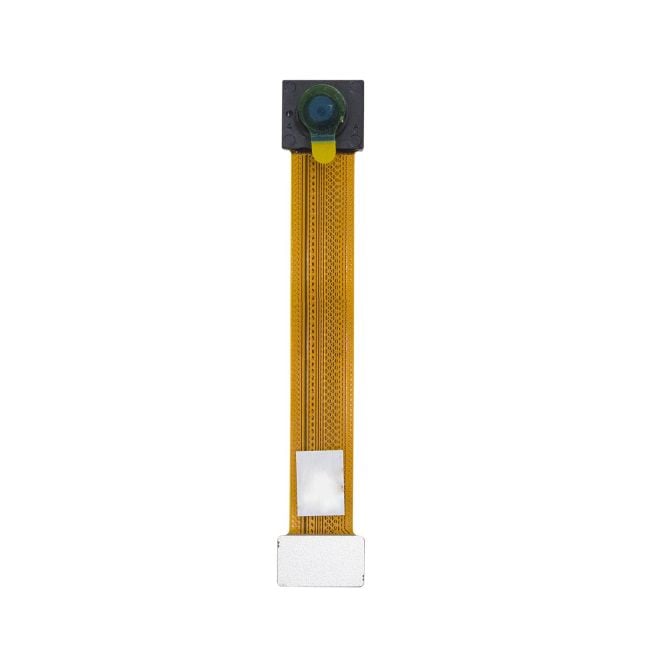

1/7.5'' CMOS OV7251 Global Shutter 0.31MP Monochrome Standalone IR Sensitive (NoIR) Camera-Arducam
SKU
U6070-1
$14.99
Overview
Specifications
Wiki
Documents
Video
Customization
Features
- EFL: 1.3mm F.No: 2.2
- View Angle: D85.6°/H72.9°/V57.7°
- Distortion: <1.5%
- Image quality: >=200LW/PH(AT=0.13m)
- Focusing Range: 0.065m-∞(AT=0.13m)
- Chip Type: OV7251-G04A-1E(COB)
- IR Sensitive, without IR filter
- Array Size: 640*480 Lens Size: 1/7.5 inch
- 3x3μm pixel with Omnipixel3-GS technology
- Support putput format:8/10-bit RAW
- Support 2x2 monochrome binning
- One-lane MIPI serial output interface
- Active array size: 640*480
- Output interface:1-lane MIPI/LVDS serial output output formats: 10-bit RGB RAW or BW
- Maximum image transfer rate: 640*480: 100 fps
- Contact us ([email protected]) for PIN definition and mating connector information
- Camera connector: BBR13-24K6417
- Board connector: BBR43-24KB533
Applications
- Cellulare phones
- Digital still cameras (DSC)
- Digital video camcorders (DVP)
- PC multimadia
- Tablets
Package Including
- 1pcs 1/7.5" CMOS OV7251 Global Shutter Standalone IR Sensitive (NoIR) Camera
