Name: Arducam 5MP OV5647 Miniature Camera Module with Long Flex Cable for Raspberry Pi 4/3B+/3 (NoIR)
SKU: B0066-02
Price: 29.99 USD
Availability: InStock

Description

Overview

In order to meet the increasing need of Raspberry Pi Zero compatible camera modules, the Arducam team now released another add-on spy camera module which is fully compatible with Raspberry Pi Zero and Pi compute module.

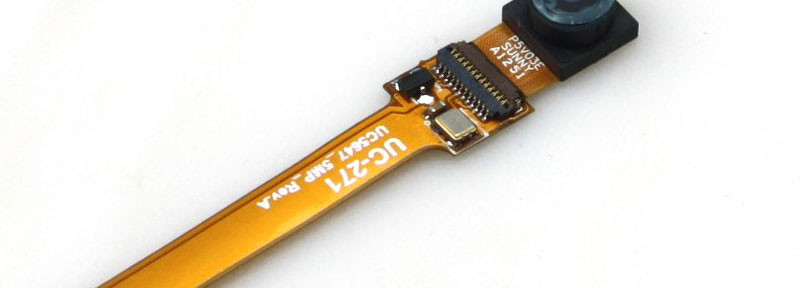

The board itself is tiny, at around 60mm x 11.5mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance or other applications where size and image quality are important.

Applications

Cellular phones
PDAs
Toys
Other battery-powered products
Can be used in all Raspberry Pi platforms
For More information,please visit www.arducam.com

Specifications

Sensor	Omnivision OV5647 sensor
Sensor size	1/4” (OV5647)
Resolution	2592×1944
Video	1080p 30 fps, 720p 60fps, 480p 90fps
Focus Distance	1 m to infinity
Full-frame SLR lens equivalent	35 mm
Focus Type	Fixed
IR Sensitivity	Without Integral IR filter
Lens Type	Stock Lens
Dimension	300 x 16 mm flex cable, neck wide is 6mm

Package Including

1 x Spy Camera Module 1/4 Inch 5 Megapixel NOIR Module with flex cable for Raspberry Pi

Note

Raspberry Pi Board is NOT INCLUDED in the package

Documentation

5MP OV5647 Standard Camera Modules

Posted: January 4, 2021

Introduction 5MP OV5647 cameras, namely the V1 camera series, are used a lot on Raspberry Pi camera applications. Unlike the V2 cameras which are encrypted on the camera board with a chip, the 5MP OV5647 cameras can be easily modified and customized by third-party manufacturers, thus you will see a lot of variations of this […]

0 comments

Datasheet.pdf

Blog

New Spy Camera for Raspberry Pi

Posted: March 1, 2015

Introduction In order to meet the increasing need of Raspberry Pi compatible camera modules. The ArduCAM team now released another add-on spy camera module for Raspberry Pi series boards which is fully compatible with official one. The board itself is tiny, at around 300mm x 16mm. The neck width of the camera module is 6mm, […]

4 comments

Selection Guide

SKU	Product	Resolution	Color	Shutter	Camera board	Mount	IR sensitivity	Focus
B0161	0.3MP Monochrome Global Shutter	0.3MP	B/W	Global shutter	40mm	Stock	Visible light	Fixed Focus
B0162	1MP Monochrome Global Shutter	1MP	B/W	Global shutter	40mm	Stock	Visible light	Fixed Focus
B0165	1MP Monochrome Global Shutter M12 Mount	1MP	B/W	Global shutter	40mm	M12	Visible light	Adjustable
B0031	5MP M12	5MP	RGB	rolling shutter	36mm	M12	Visible light	Adjustable
B0032	5MP CS Mount	5MP	RGB	rolling shutter	36mm	CS	Visible light	Adjustable
B0033	5MP	5MP	RGB	rolling shutter	24mm	Stock	Visible light	Fixed Focus
B0033+B0087	5MP with Pi Zero Cable	5MP	RGB	rolling shutter	24mm	Stock	Visible light	Fixed Focus
B003301	5MP NoIR	5MP	RGB	rolling shutter	24mm	Stock	IR sensitive	Fixed Focus
B0033C	5MP with case	5MP	RGB	rolling shutter	24mm	Stock	Visible light	Fixed Focus
B0033R	5MP with long Ribbon Cable	5MP	RGB	rolling shutter	24mm	Stock	Visible light	Fixed Focus
B0035	5MP M12 NOIR	5MP	RGB	rolling shutter	36mm	M12	IR sensitive	Adjustable
B003503	5MP Switchable IR-cut with LED	5MP	RGB	rolling shutter	36mm	M12	Switchable IR filter	Adjustable
B0036	5MP CS Mount CS NOIR	5MP	RGB	rolling shutter	36mm	CS	IR sensitive	Adjustable
B0055	5MP M12 Fisheye	5MP	RGB	rolling shutter	36mm	M12	Visible light	Adjustable
B0066	5MP Cam	5MP	RGB	rolling shutter	spy cam	Stock	Visible light	Fixed Focus
B006602	5MP NOIR	5MP	RGB	rolling shutter	spy cam	Stock	IR sensitive	Fixed Focus
B006603	5MP Pi zero spy cam 60	5MP	RGB	rolling shutter	spy cam Zero	Stock	Visible light	Fixed Focus
B006604	5MP Pi zero spy cam 120	5MP	RGB	rolling shutter	spy cam Zero	Stock	Visible light	Fixed Focus
B006605	5MP Pi zero spy cam 160	5MP	RGB	rolling shutter	spy cam Zero	Stock	Visible light	Fixed Focus
B0121	5MP AutoFocus	5MP	RGB	rolling shutter	40mm	Stock	Visible light	Programmable
B0151	5MP Switchable IR-cut	5MP	RGB	rolling shutter	36mm	M12	Switchable IR filter	Adjustable
B01675MP	5MP PTZ	5MP	RGB	rolling shutter	36mm	F14	Switchable IR filter	Varifocal
B0176	5MP AutoFocus mini	5MP	RGB	rolling shutter	24mm	Stock	Visible light	Programmable
B0102	8MP CS	8MP	RGB	rolling shutter	36mm	CS	Visible light	Adjustable
B0103	8MP M12	8MP	RGB	rolling shutter	36mm	M12	Visible light	Adjustable
B0122	8MP AutoFocus	8MP	RGB	rolling shutter	40mm	Stock	Visible light	Programmable
B0152	8MP M12 NOIR	8MP	RGB	rolling shutter	36mm	M12	IR sensitive	Adjustable
B0153	8MP CS NoIR	8MP	RGB	rolling shutter	36mm	CS	IR sensitive	Adjustable
B0154	8MP M12 Switchable IR-cut	8MP	RGB	rolling shutter	36mm	M12	Switchable IR filter	Adjustable
B01678MP	8MP PTZ	8MP	RGB	rolling shutter	36mm	F14	Switchable IR filter	Varifocal
B0180	8MP IMX219 replacement M12 170 Wide Angle	8MP	RGB	rolling shutter	Sensor Module	M12	Visible light	Adjustable
B0182	8MP IMX219 replacement Autofocus	8MP	RGB	rolling shutter	Sensor Module	Stock	Visible light	Programmable
B0184	8MP IMX219 replacement M12 Low Distortion	8MP	RGB	rolling shutter	Sensor Module	M12	Visible light	Adjustable
B0188	8MP IMX219 replacement M12 Low Distortion NoIR	8MP	RGB	rolling shutter	Sensor Module	M12	IR sensitive	Adjustable
B0190	8MP IMX219 replacement Autofocus NoIR	8MP	RGB	rolling shutter	Sensor Module	Stock	IR sensitive	Programmable
B1094	8MP IMX219 replacement M12 170 Wide Angle NoIR	8MP	RGB	rolling shutter	Sensor Module	M12	IR sensitive	Adjustable
B0163	13MP MIPI Camera	13MP	RGB	rolling shutter	40mm	Stock	Visible light	Fixed Focus
B0174	16MP MIPI Camera	16MP	RGB	rolling shutter	40mm	Stock	Visible light	Fixed Focus
B0164	18MP MIPI Camera	18MP	RGB	rolling shutter	40mm	M12	Visible light	Adjustable

How to purchase

You can purchase this item from Arducam distributors

Additional information

Weight	0.0225 kg
Platform	Raspberry Pi
Camera Solution	Native Camera
Interface	MIPI CSI
Sensor	OV5647
On-board ISP	NO
Shutter Type	Rolling Shutter
Resolution	5MP
Chroma	MONO
Features	High Speed
Focus Type	Fixed Focus
